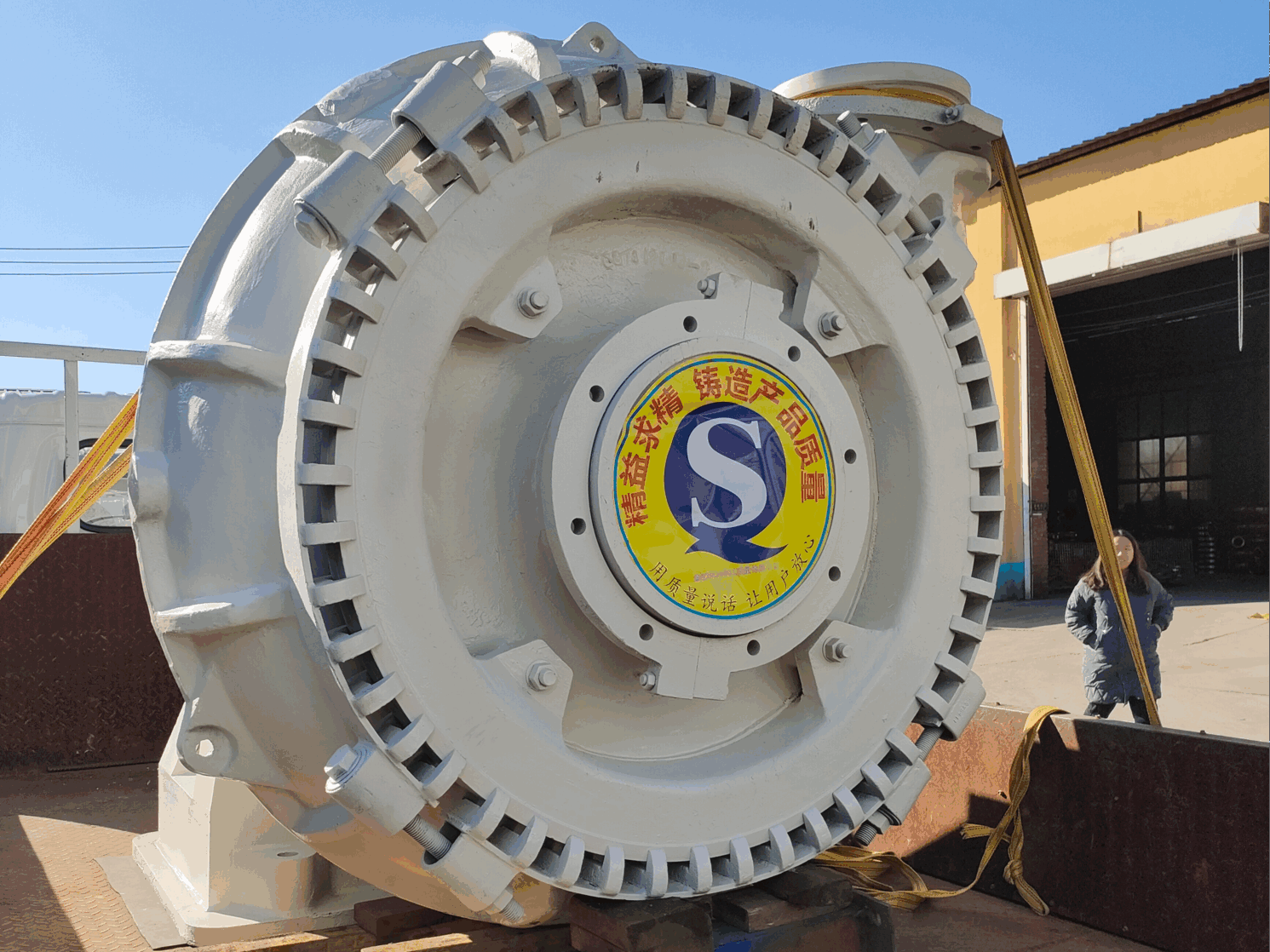

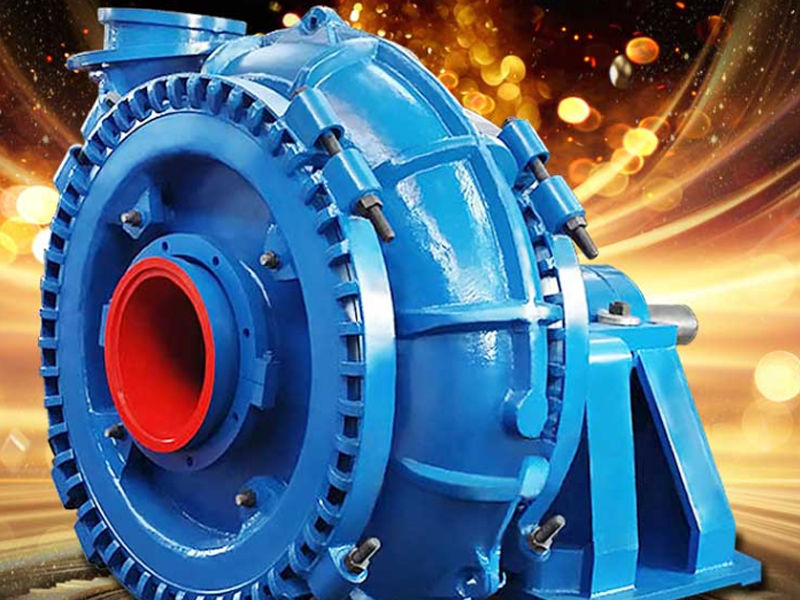

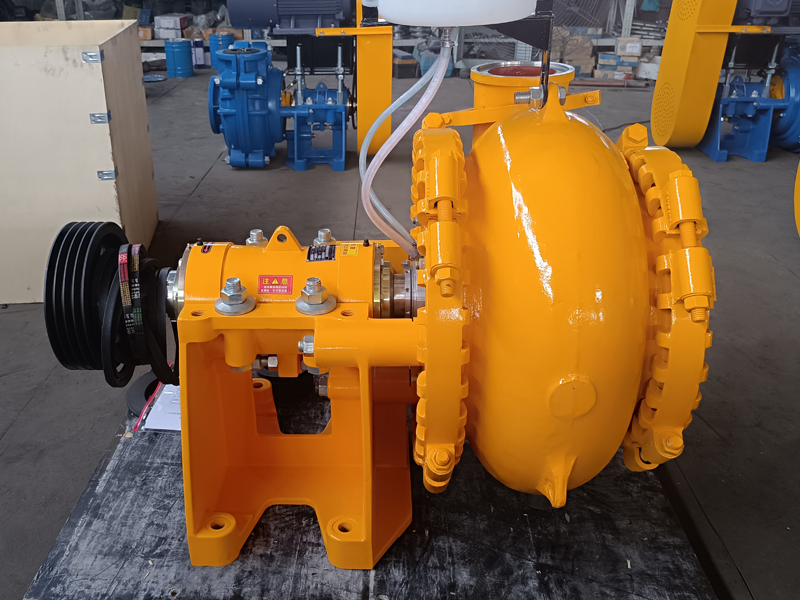

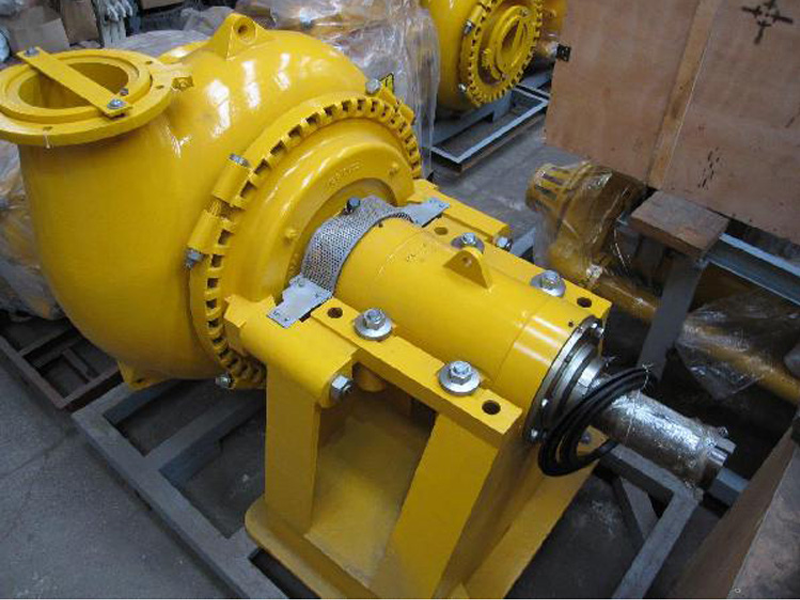

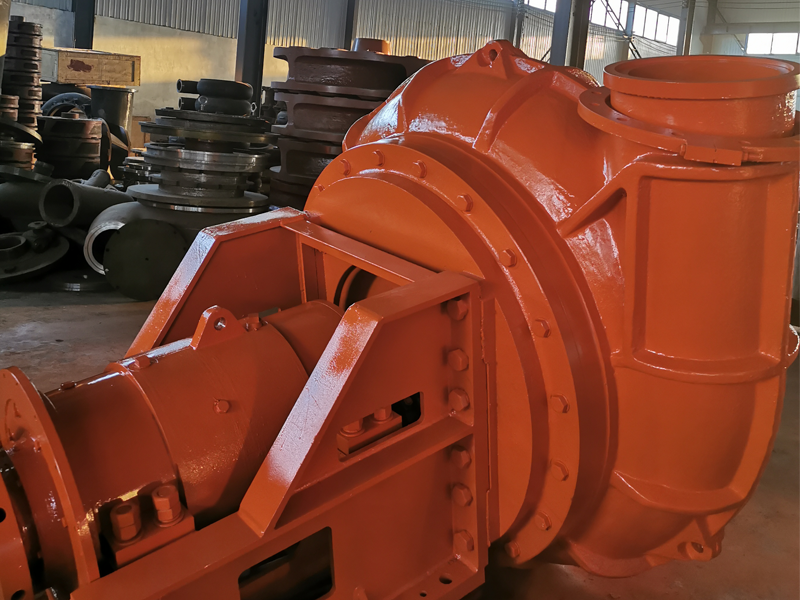

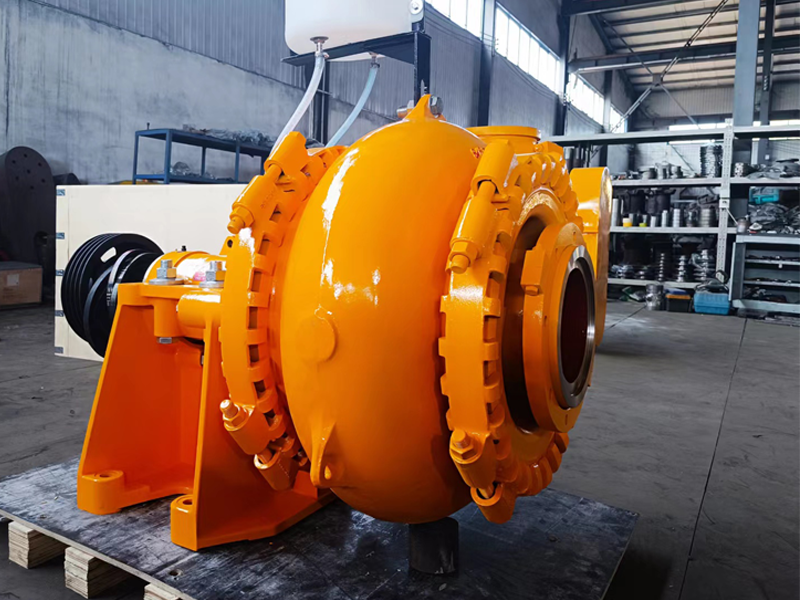

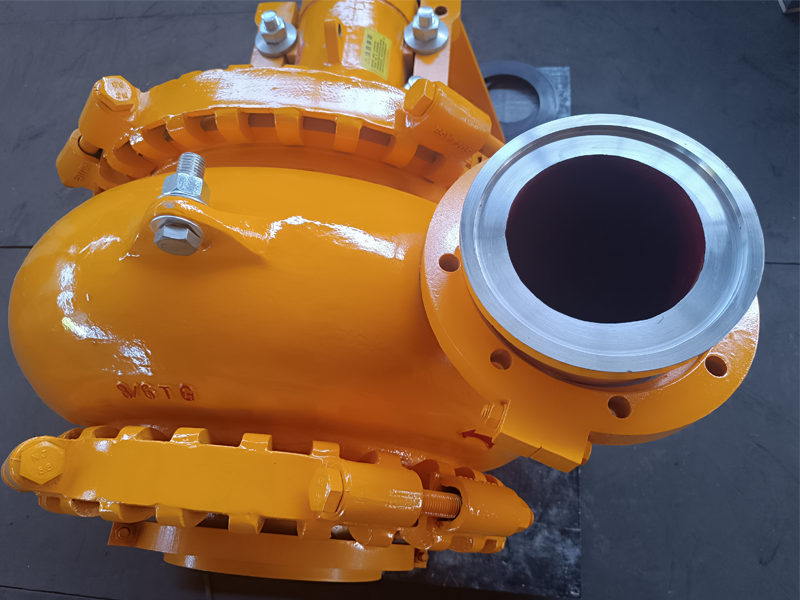

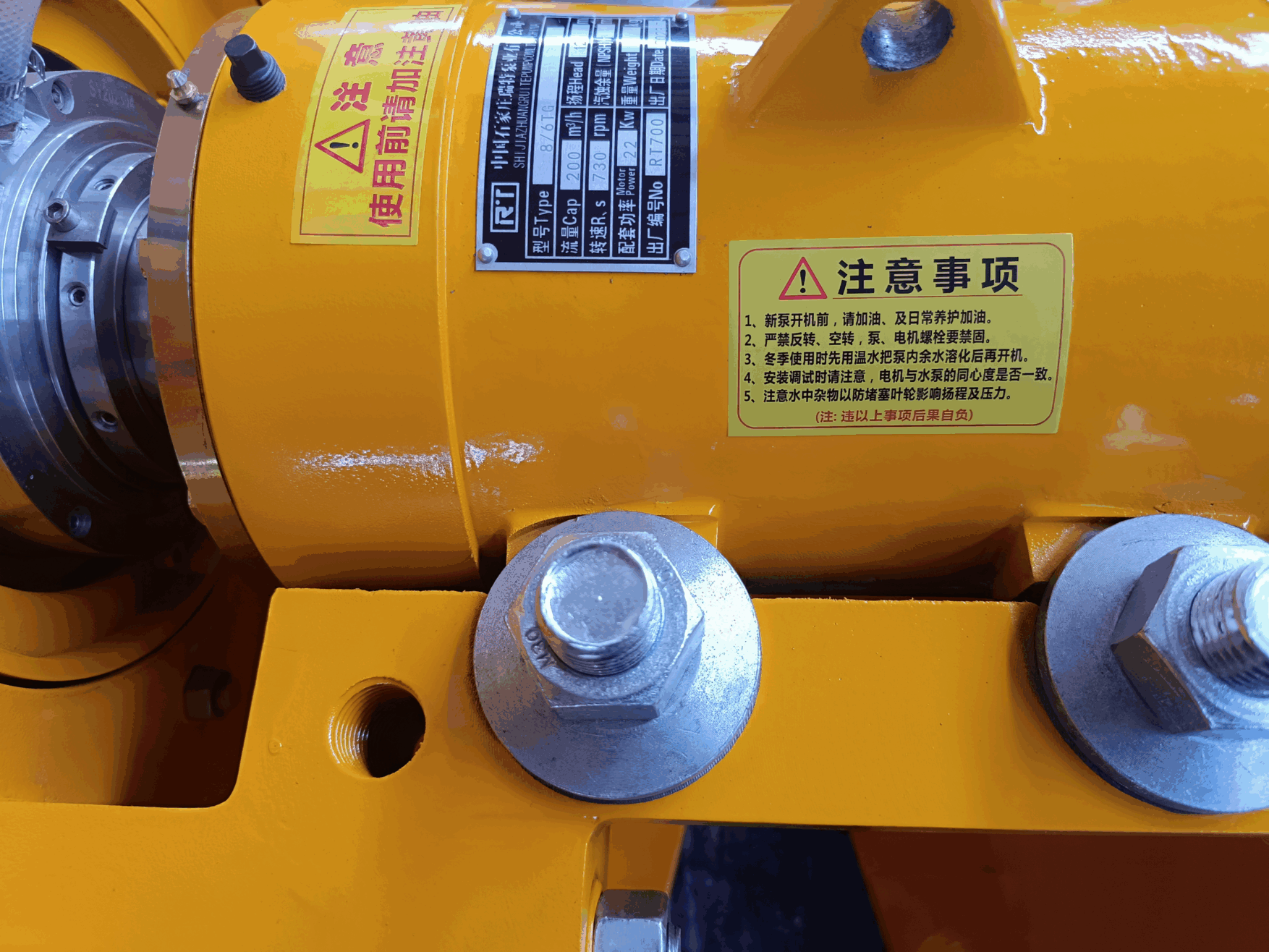

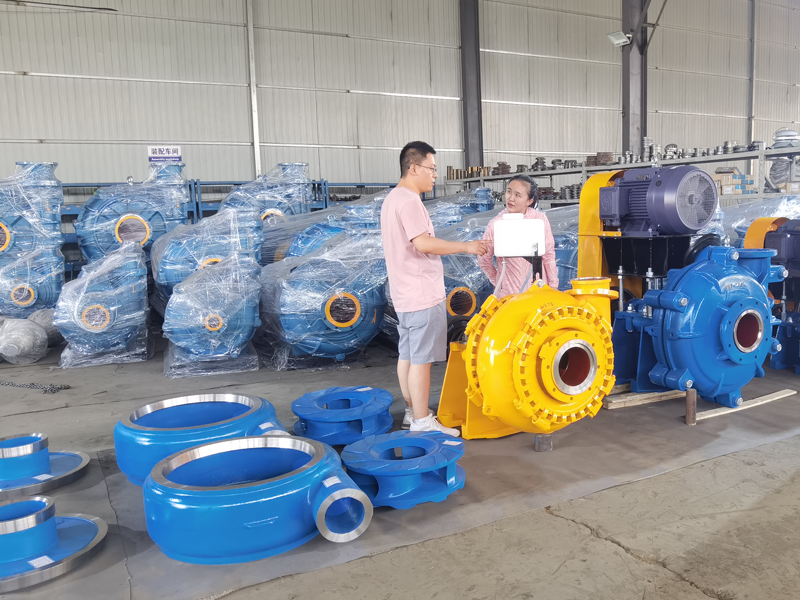

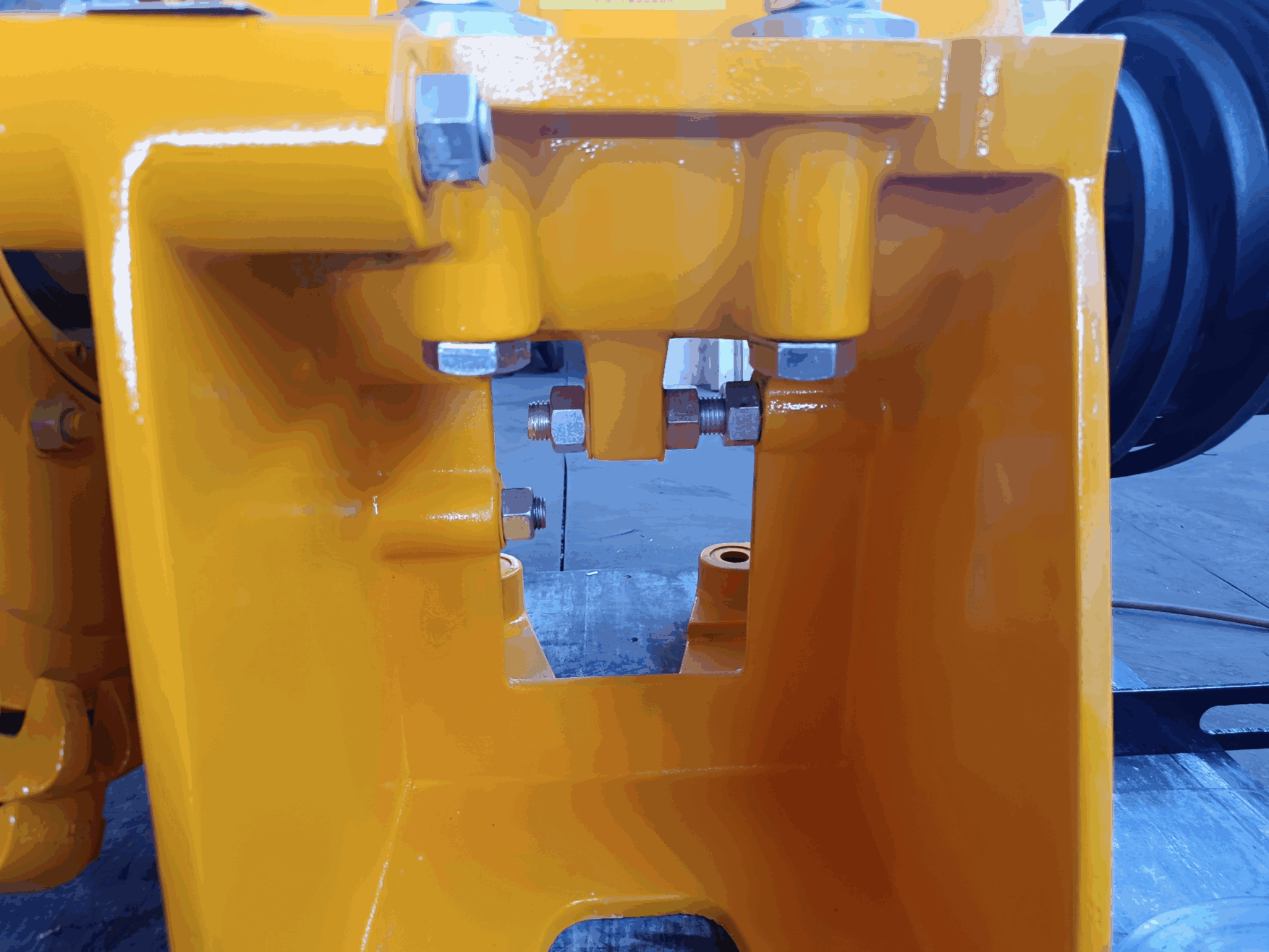

TG/TGH Gravel Sand Pump

TG(H) Gravel Sand Pump is horizontal single-casing gravel pump with wide channel to transfer sands,slurries or gravels with big particle size. The wet parts are made of Ni-hard and high-Chrome alloys to ensure long service life. It has superior performance than common pumps in dredging, sand mining, barge loading and mineral processing etc. With all the advantages of TG Gravel pump,TGH gravel pump has achieved extra high head for special working conditions.

Outlet Size:

4-16inch

Inlet size:

6-18inch

Capacity:

36-4320m3/h

Head:

5-80m

Handling solids:

0-260mm

Description

TG(H) Gravel Sand Pump is horizontal single-casing gravel pump with wide channel to transfer sands,slurries or gravels with big particle size. The wet parts are made of Ni-hard and high-Chrome alloys to ensure long service life. It has superior performance than common pumps in dredging, sand mining, barge loading and mineral processing etc. With all the advantages of TG Gravel pump,TGH gravel pump has achieved extra high head for special working conditions.

Working range of TG(H) series Gravle pump

(only reference for intial model selection)
Working range of TG(H) series Gravle pump

Design Features

• Horizontal,Cantilevered, Single casing, Centrifugal Gravel sand pump.
• The wetted parts are made of Ni-hard and Ultrahigh-chrome alloys with super strong abrasion resistance.
• The discharge direction of pump can be oriented in any angle of 360°.

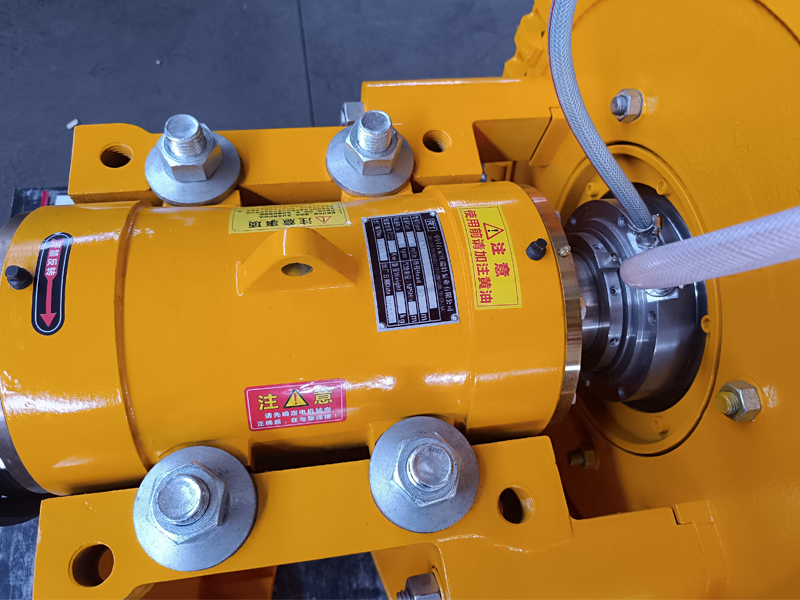

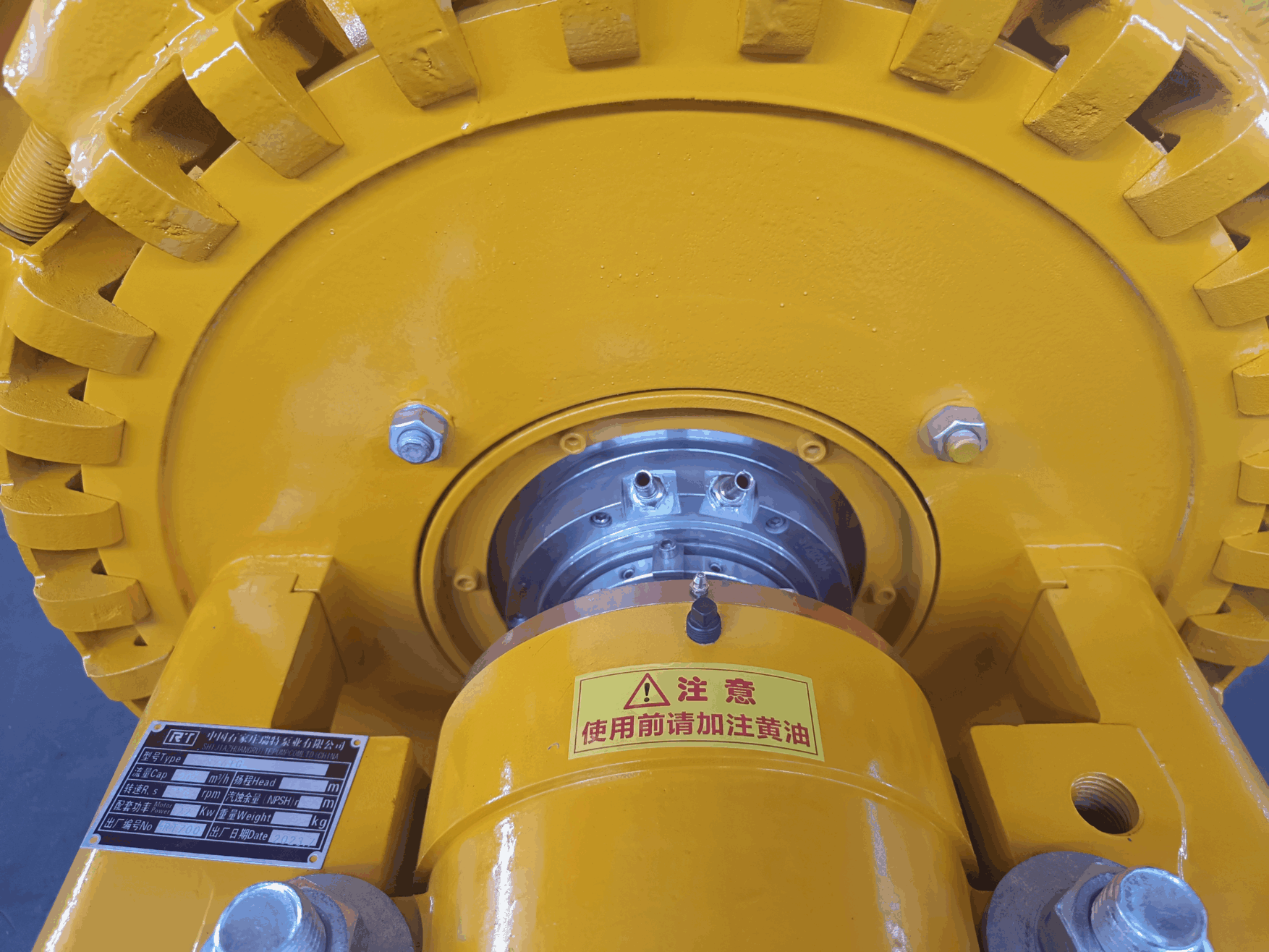

• Packing seal, Expeller seal and Mechanical seal are available as per different application.
• Excellent NPSH performance.
• Simple and reliable construction, Easy to disassembly, assembly and maintain.

Model Meaning

TG-4E
T: RUITE
G: Gravel
4: Outlet diameter(inch)
E: Bracket type

TG Gravel Sand Pumps Quick Selection Chart

Model	Max.Power P (kw)	Capacity Q (m³/h)	Head H (m)	Speed n (r/min)	Eff. η (% )	NPSH (m)	Impeller Dia. (mm)
TG-4D	60	36-250	5-52	600-1400	58	2-5.5	378
TG-4E	120	36-250	5-52	600-1400	58	2-5.5	378
TG-6E	120	126-576	6-45	800-1400	60	3-4.5	391
TG-8S	560	216-936	8-52	500-1000	65	3-7.5	533
TGH-8S	560	180-1440	24-80	500-950	72	2.5-5	711
TG-8F	260	216-936	8-52	400-800	65	3-7.5	533
TG-10F	260	360-1440	10-60	350-700	65	1.5-4.5	667
TG-10G	600	360-1440	10-60	400-850	65	1.5-4.5	667
TGH-10G	600	288-2808	16-80	350-700	73	2-10	950
TG-12G	600	576-3024	8-70	300-700	68	2-8	864
TG-/12T	1200	576-3024	8-70	300-700	68	2-8	864
TG-14G	600	720-3600	18-45	300-500	70	3-9	1016
TG-14T	1200	720-3600	18-45	300-500	70	3-9	1016
TGH-14TU	1200	324-3600	26-70	300-500	72	3-6	1270
TG-16TU	1200	720-4320	12-48	250-500	72	3-6	1067
