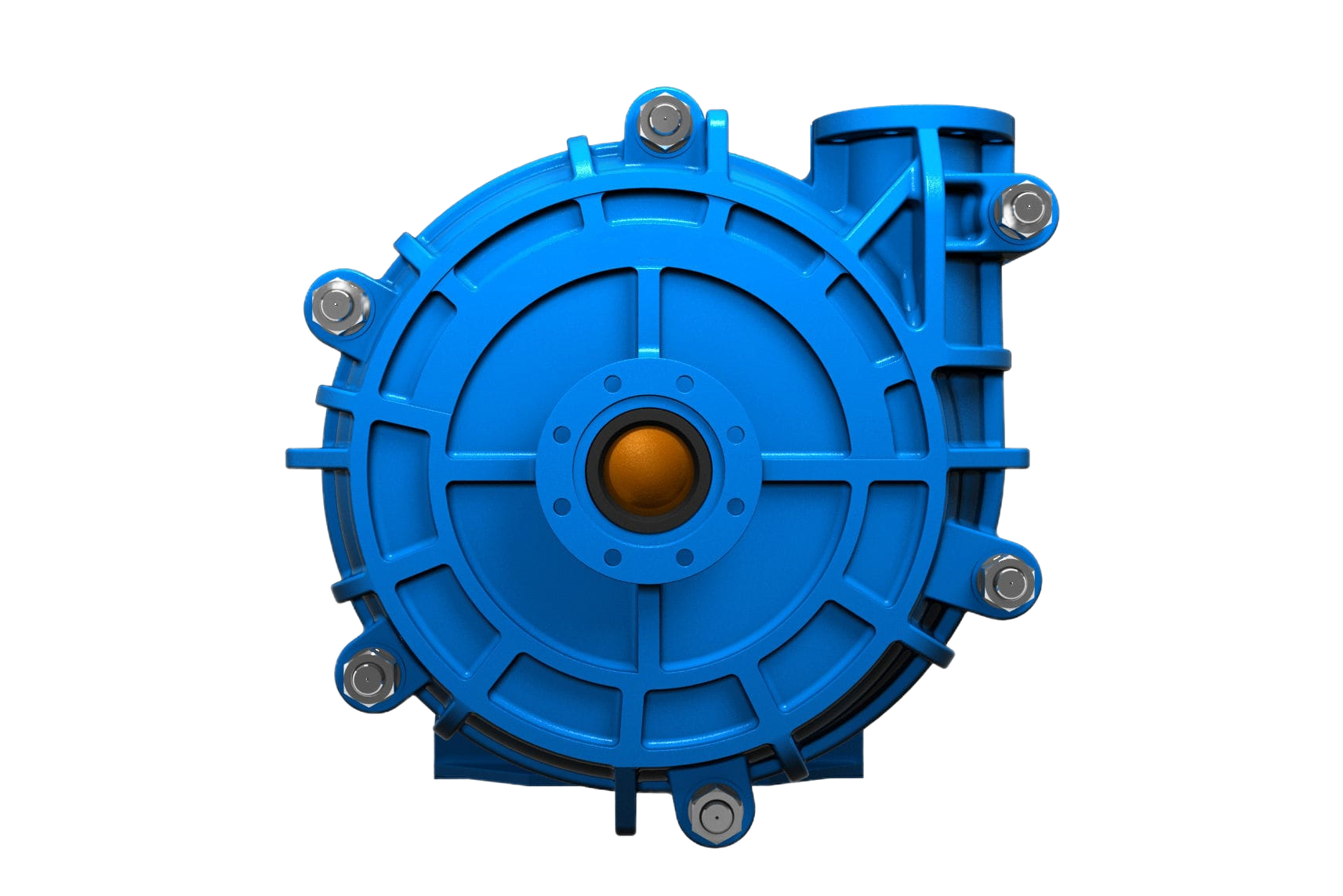

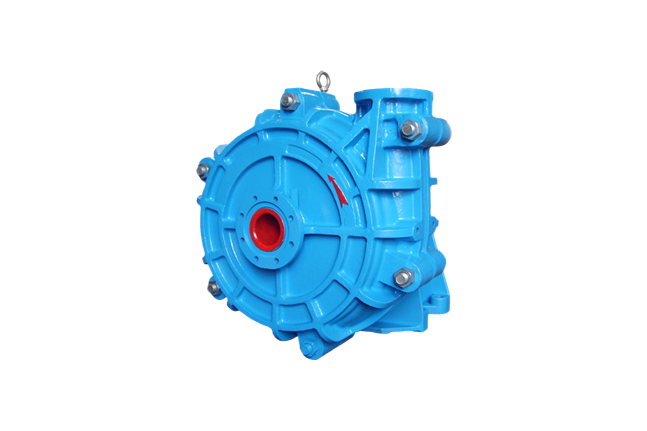

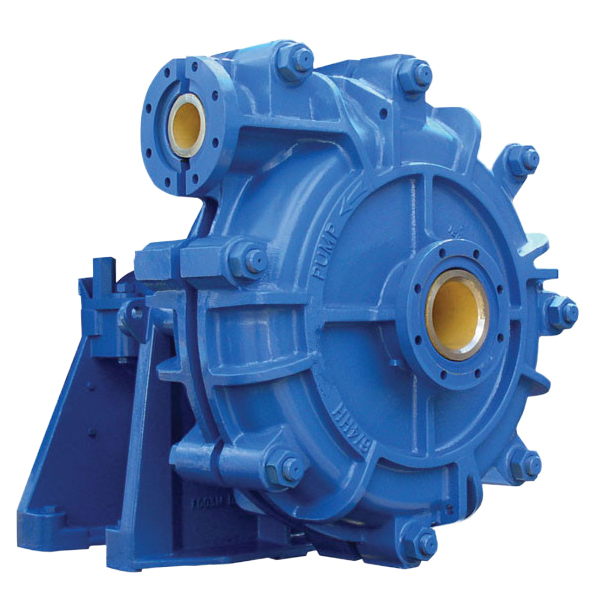

THH slurry pump is a single-stage, single-suction,cantilever, double-shell,horizontal centrifugal slurrypump, which are widely used in metallurgy,electric power, chemical industry, mining, paper making, building materials and other industries to transport strong abrasive slurry.The pump is used for high concentrations and high lift conditions, especially suitable for high lift conditions that general single -stage pumps cannot be transported.
THH series slurry pumps feature ribs on the surface of the pump casing and cover in order to help them adapt to a higher pressure.Compared to TH series slurry pumps, are characterized by the ability to convey higher concentrations and higher heads and are designed for continuous pumping of high abrasion, high density and high pressure slurries.
This model has thicker wet parts with heavy duty base and can be used in series with multiple stages within the maximum allowable operating pressure of the pump.
1. High head, high pressure centrifugal end suction slurry pump, long service life.
2. Impeller and liners are made of high chrome alloy, anti-abrasive and wear-resistant.
3. Various types of pump seals to suit different working condition.
4. Discharge branch can be positioned at intervals of 45 degree
5. Can be installed in multi-stage.
（only reference for intial model selection）
THH High Head Slurry Pumps Performance Parameters:
| Model |
Max. Power (kw) |
Clear Water Performance | Impeller | |||||
|
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. η (%) |
NPSH (m) |
Vane No. | Impeller Dia. | ||
| THH-1C | 30 | 16.2-34.2 | 25-92 | 1400-2200 | 20 | 2--5.5 | 5 | 330 |
| THH-2D | 60 | 68.4-136.8 | 25-87 | 850-1400 | 47 | 3-7.5 | 5 | 457 |
| THH-3E | 120 | 126-252 | 12-97 | 600-1400 | 50 | 2-5 | 5 | 508 |
| THH-4F | 560 | 324-720 | 30-118 | 600-1000 | 64 | 3-8 | 5 | 711 |
| THH-6S | 560 | 468-1008 | 20-94 | 500-1000 | 65 | 4-12 | 5 | 711 |
