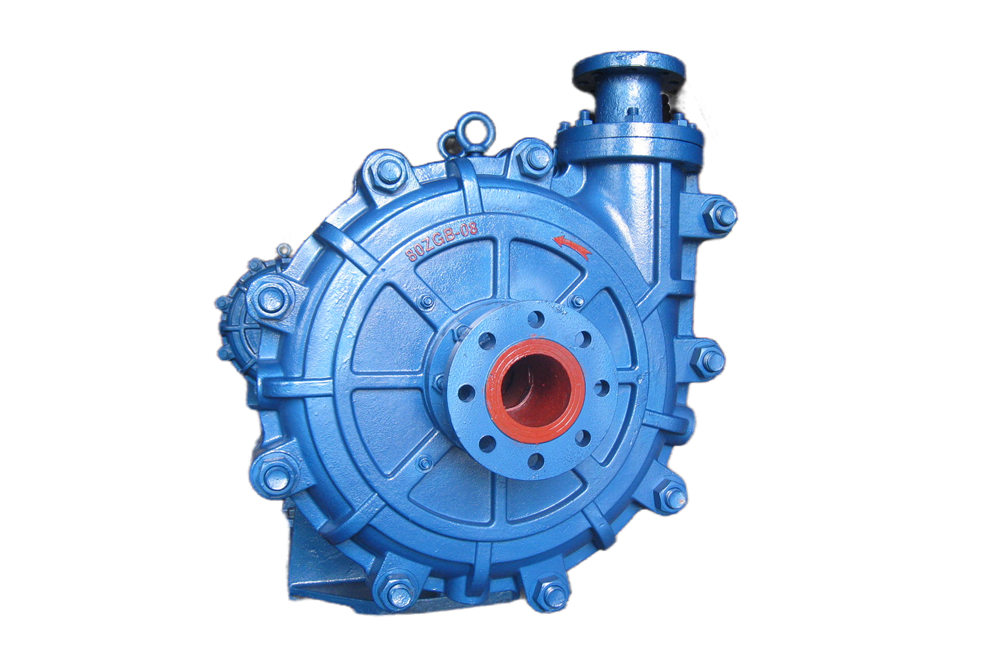

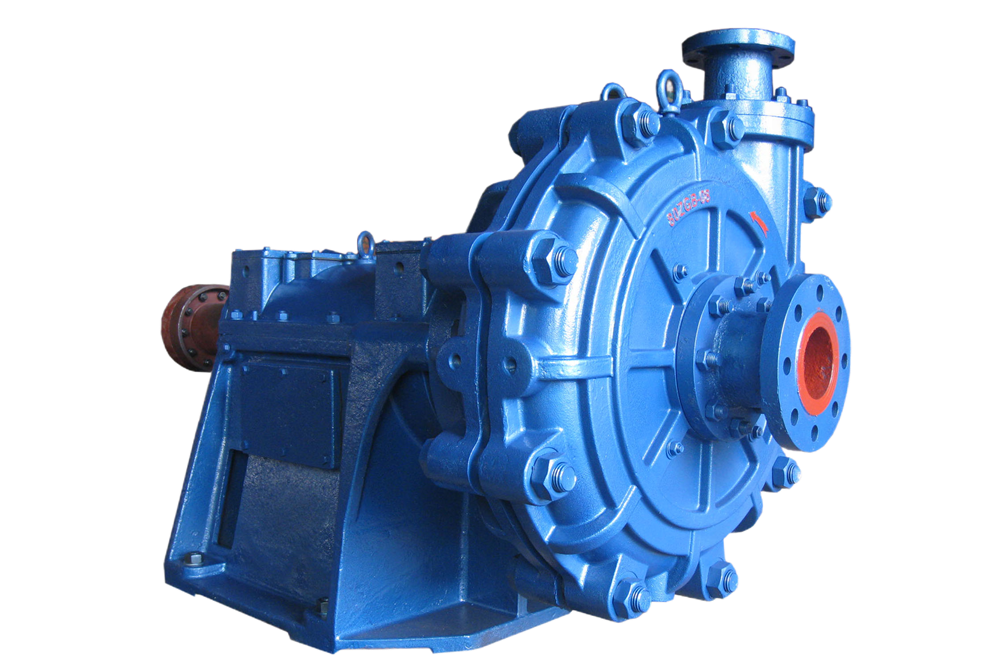

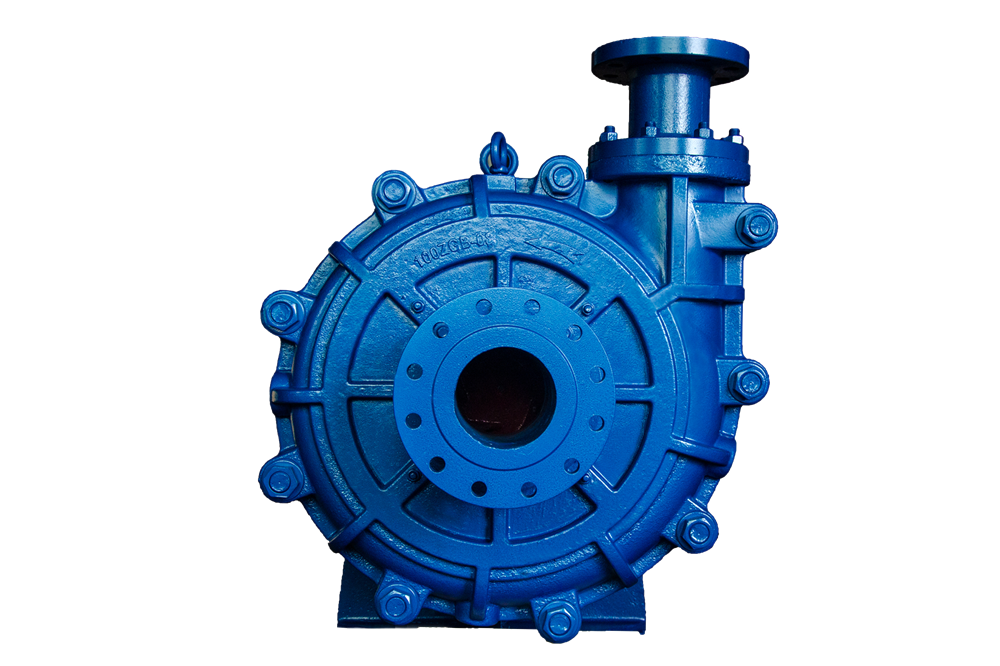

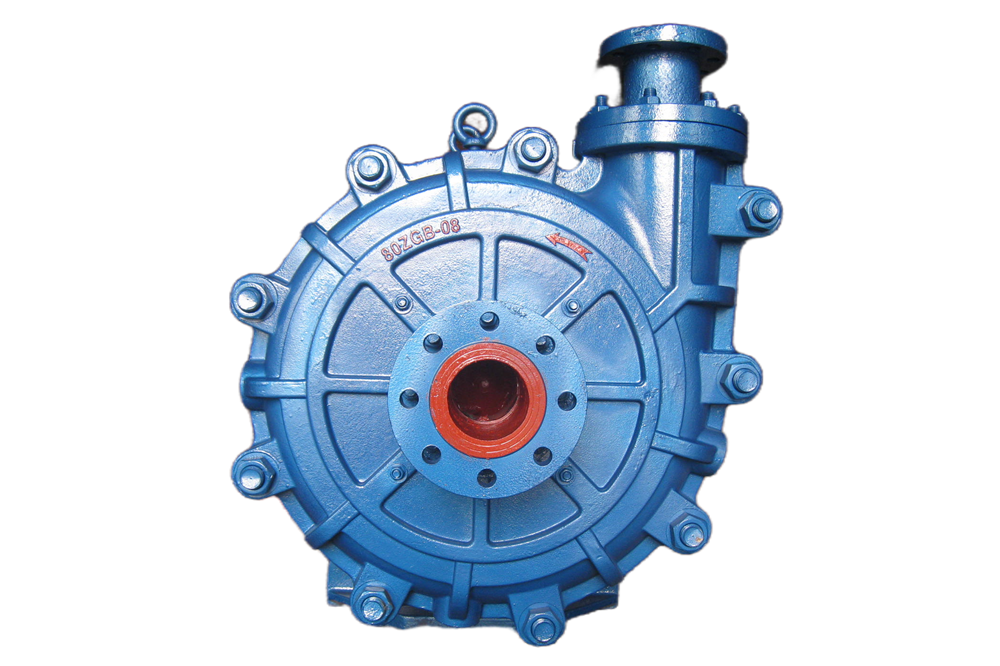

ZGB Series Horizontal Slurry Pump

ZGB series slurry pump are horizontal, cantilevered, centrifugal, single stage slurry pump, with the advantages of high efficiency, large capacity, non-clogging, good performance of NPSH and anti-wearing and anti-corrosion materials, widely used for handling the mixture contained of abrasive and corrosive solids in electric power, metallurgy ,mine, coal, constructional material and chemical industry departments, especially for removing ash and sludge in electric power station.

Outlet size:

65-300mm

Capacity:

37.8-1918m³/h

Head:

25-94m

Efficiency:

45-77%

Materials:

Hyper chrome alloy, Ceramic, Stainless steel etc.

Description

ZGB series slurry pump are horizontal, cantilevered, centrifugal, single stage slurry pump, with the advantages of high efficiency, large capacity, non-clogging, good performance of NPSH and anti-wearing and anti-corrosion materials, widely used for handling the mixture contained of abrasive and corrosive solids in electric power, metallurgy ,mine, coal, constructional material and chemical industry departments, especially for removing ash and sludge in electric power station.

ZGB series slurry pump Structure diagram

ZGB High Efficiency Slurry Pump For Abrasive And Corrosion Solid

Application and Features

In order to meet requirements on the development of the electric power, metallurgy and coal industries, series ZGB(P) has been designed with large capacity, high head, multi-stages in series to remove ash and sluge and to deliver liquid-solids mixture.
CAD modern design , super hydraulic performance, high efficiency and lower abrasion.
Wide passage,non-clogging and good performance of NPSH.
Expeller seal combined wiht packing seal and mechanical seal can stop slurry leakage.
Wet end parts have good performance of anti wearing and anti-corrosion.
This series pump has the advantage of reasonable construction, high efficiency, reliable operation and easy maintenance.
It can be widely used for handing the contained of abrasive and corrosion solids in electric power, metallurgy, mine coal, constructional materials and chemical industry department, especially for removing ash and sludge in electric power station.

ZGB slurry pump selection chat

ZGB Slurry Pump Performance Parameters

Model	inlet（mm）	Speed（r/m）	Clear water performance				Pa （KW）	Impeller Dia（mm）
Model	inlet（mm）	Speed（r/m）	Q (L/S)	H （m）	η （%）	NPSH（m）	Pa （KW）	Impeller Dia（mm）
65ZGB	65	1480	15.8-31.7	58.0-61.0	48.0-54.0	3.0-5.5	19.7-33.4	390
65ZGB	65	980	10.5-21.0	25.4-26.7	48.0-54.0	3.0-5.5	5.73-9.69	390
80ZGB	80	1480	28.3-56.7	87.5-91.6	45.3-64.2	2.7-5.2	56.0-75.7	490
		980	18.8-37.5	38.1-40.2	45.3-64.2	2.7-5.2	16.3-22.0	490
		1480	25.7-51.5	72.2-75.5	45.3-64.2	2.7-5.2	42.0-56.7	445
		980	17.1-34.1	31.7-33.1	45.3-64.2	2.7-5.2	12.2-16.5	445
		1480	23.1-46.2	58.3-61.0	45.3-64.2	2.7-5.2	30.5-41.1	400
		980	15.3-30.6	25.6-26.7	45.3-64.2	2.7-5.2	8.8-12.0	400
100ZGB	100	1480	58.3-116.7	85.1-91.8	57.4-77.9	2.6-6.0	91.4-124.9	500
		980	38.8-77.3	37.3-40.3	57.4-77.9	2.6-6.0	26.6-36.3	500
		1480	52.5-105.0	68.9-74.4	57.4-77.9	2.6-6.0	66.7-91.0	450
		980	34.8-69.5	30.2-32.6	57.4-77.9	2.6-6.0	19.4-26.4	450
		1480	46.7-93.4	54.5-58.8	57.4-77.9	2.6-6.0	46.9-64.0	400
		980	30.9-61.8	23.9-25.8	57.4-77.9	2.6-6.0	13.6-18.6	400
150ZGB	150	980	100.0-200.0	85.2-90.0	50.5-73.7	2.7-3.8	174.4-226.6	740
		740	75.6-151.2	48.6-51.3	50.5-73.7	2.7-3.8	75.3-97.7	740
		980	91.2-182.4	73.0-77.1	50.5-73.7	2.7-3.8	135.6-177.1	685
		740	70.2-140.0	41.6-44.0	50.5-73.7	2.7-3.8	59.9-77.7	685
		980	84.6-169.2	61.8-65.2	50.5-73.7	2.7-3.8	107.0-139.0	630
		740	64.8-129.6	35.2-37.2	50.5-73.7	2.7-3.8	46.7-60.7	630
200ZGB（p）	200	980	150.0-300.0	89.0-94.2	63.2-76.3	2.7-6.7	219.1-342.9	740
		740	113.3-226.5	50.7-53.7	63.2-76.3	2.7-6.7	94.3-147.5	740
		980	141.9-283.8	79.6-84.3	63.2-76.3	2.7-6.7	185.8-290.2	700
		740	107.1-214.3	45.4-48.1	63.2-76.3	2.7-6.7	80.0-125.0	700
		980	129.7-259.5	66.6-70.5	63.2-76.3	2.7-6.7	141.8-222.0	640
		740	97.9-195.9	38.0-40.2	63.2-76.3	2.7-6.7	61.0-95.0	640
250ZGB（p）	250	980	200.0-400.0	84.0-90.1	62.1-76.2	3.3-7.3	284.4-432.1	740
		740	151.0-302.0	47.9-51.4	62.1-76.2	3.3-7.3	122.5-186.0	740
		980	189.2-378.4	75.2-80.6	62.1-76.2	3.3-7.3	240.7-388.0	700
		740	142.9-285.2	42.9-46.0	62.1-76.2	3.3-7.3	103.6-157.6	700
		980	131.6-348.6	63.8-68.5	62.1-76.2	3.3-7.3	142.2-286.0	645
		740	99.4-263.2	36.4-39.1	62.1-76.2	3.3-7.3	61.3-123.2	645
300ZGB	300	980	266.7-533.3	84.3-93.4	65.3-77.7	3.5-6.9	373.8-567.0	760
		740	201.3-402.7	48.1-53.3	65.3-77.7	3.5-6.9	163.7-244.3	760
		980	246.7-493.3	72.1-79.9	65.3-77.7	3.5-6.9	295.8-448.6	703
		740	177.9-372.5	41.1-45.6	65.3-77.7	3.5-6.9	121.7-193.1	703
		980	266.7-453.3	60.9-67.5	65.3-77.7	3.5-6.9	299.7-348.4	646
		740	171.2-342.3	34.7-38.5	65.3-77.7	3.5-6.9	98.8-149.8	646
