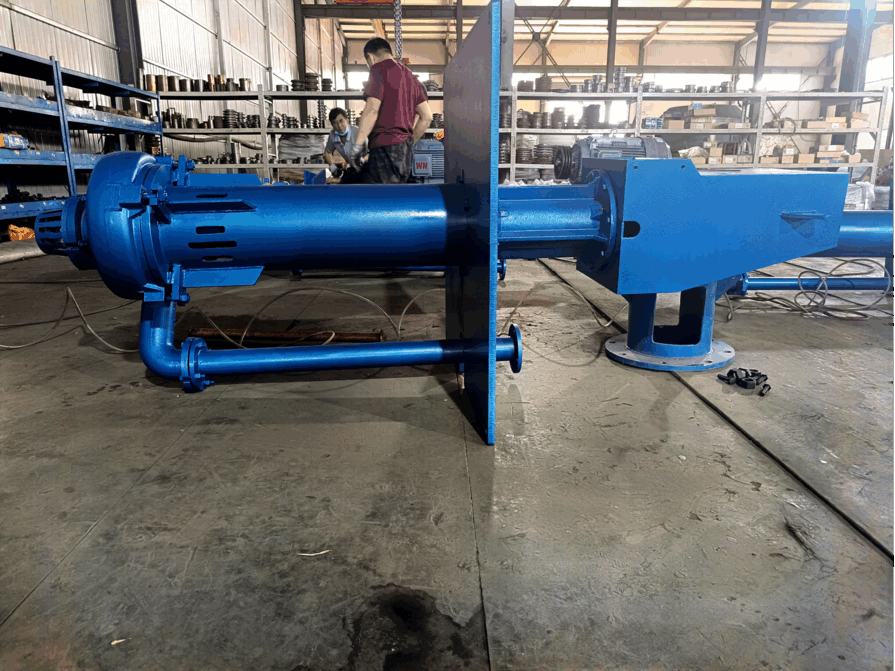

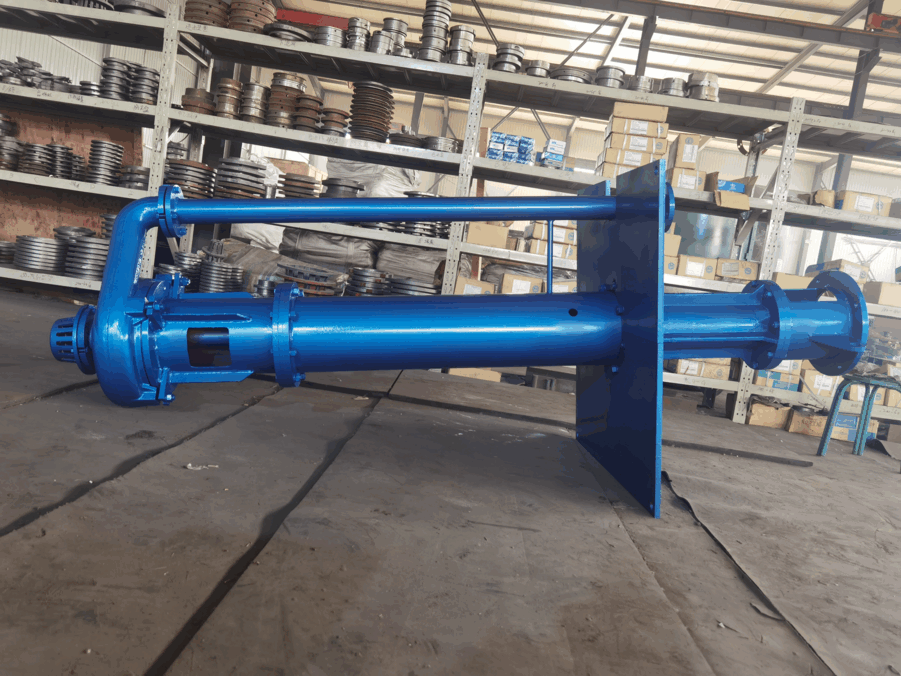

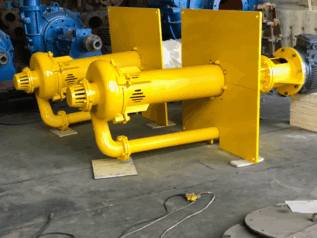

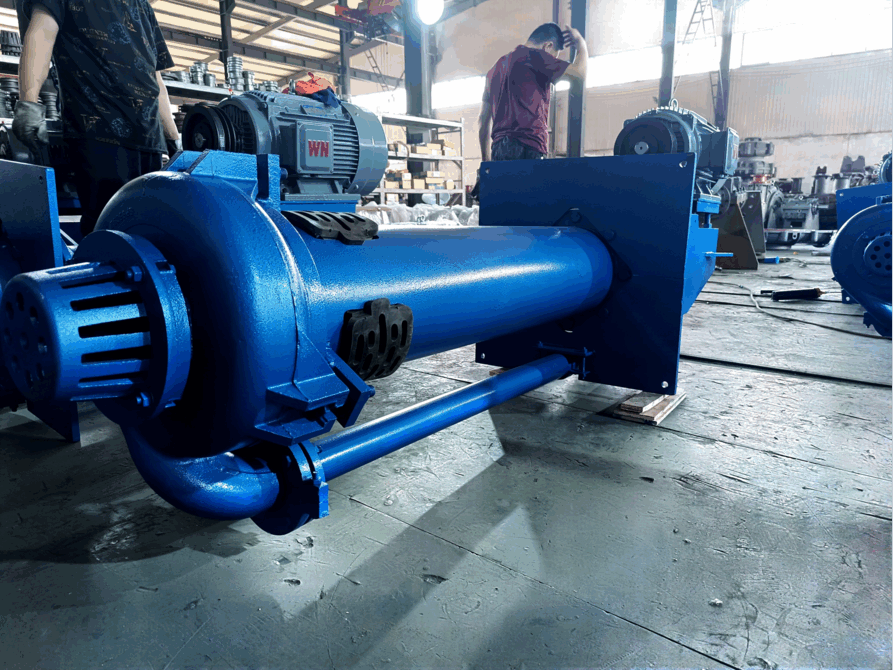

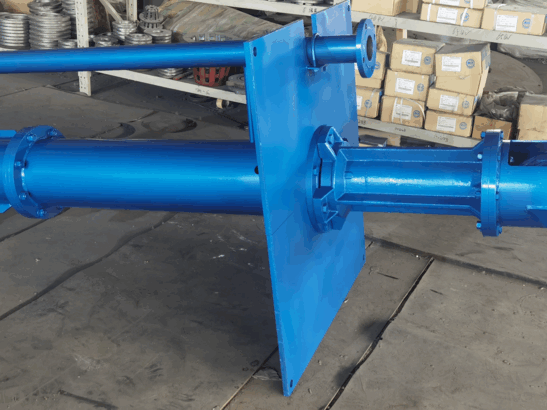

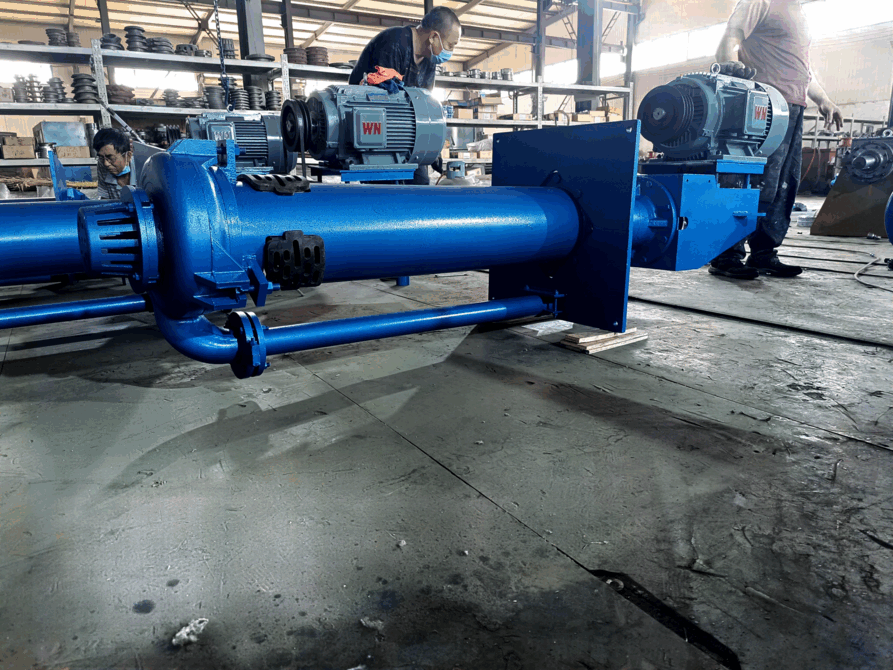

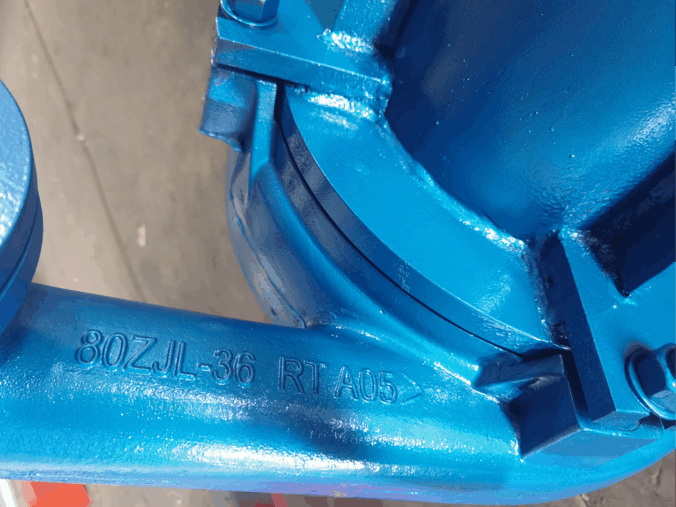

The ZJL vertical slurry pump is a vertical axial suction single-stage single suction centrifugal structure. It is mainly composed of impeller, volute, rear liner plate, shaft sleeve, support, support plate, shaft, bearing, bearing body and other parts. The materials of impeller, volute, rear liner plate and other parts in contact with the slurry vary according to the slurry characteristics.
The impeller and shaft are connected by threads, and the volute, support and bearing body are connected by bolts. The pump shaft and motor can be driven directly by coupling or belt. The vertical pump has no circumferential peak structure, and the bearing is lubricated with grease.
Vertical Slurry Pumps are highly configurable pumping equipment designed to reduce maintenance and operating costs. They require less floor space than horizontal pumps, and wear parts are made of hard metal or rubber.
What is the comparison between Vertical Slurry Pump and Horizontal Slurry Pump:
1. Startup method| Type | Allowable max.power of ass.motor (kW) |
Clear water performance | Particle max. Size handled occasionally (mm) |
Pump weight (kg) |
||||
| Q Capacity (m3/h) |
H Head (m) |
n Speed (r/min) |
Max.eff. (%) |
(NPSH)r (m) |
||||
| 150ZJL-B55B | 110 | 128.5-479.1 | 10.0-49.3 | 490-980 | 59.8 | / | 50 | 2112 |
| 150ZJL-A35 | 37 | 99-364 | 3.0-17.9 | 490-980 | 69.0 | / | 15 | 800 |
| 100ZJL-A34 | 45 | 74-293 | 5.5-36.8 | 700-1480 | 65.8 | / | 14 | 630 |
| 80ZJL-A36 | 45 | 50-201 | 7.3-45.5 | 700-1480 | 58.2 | / | 12 | 650 |
| 80ZJL-A36B | 45 | 51.1-220.5 | 6.4-44.9 | 700-1480 | 54.1 | / | 15 | 650 |
| 65ZJL-A30 | 18.5 | 18-98 | 5.9-34.7 | 700-1470 | 53.7 | / | 8 | 440 |
| 65ZJL-A30B | 22 | 27.9-105.8 | 7.1-34.4 | 700-1470 | 60.9 | / | 10 | 440 |
| 65ZJL-B30J | 15 | 18.9-84.2 | 5.8-32.3 | 700-1470 | 49.1 | / | 8 | 440 |
| 50ZJL-A45B | 55 | 22.9-107.4 | 11.4-74.0 | 700-1470 | 39.1 | / | 25 | 1106 |
| 50ZJL-B40 | 30 | 15-65 | 8.6-58.3 | 700-1470 | 34.1 | / | 9 | 540 |
| 50ZJL-A35 | 22 | 19-86 | 7.3-47.1 | 700-1470 | 48.1 | / | 15 | 500 |
| 50ZJL-A35B | 22 | 17.1-73 | 8.0-46.5 | 700-1470 | 45.1 | / | 20 | 500 |
| 50ZJL-A20 | 4 | 8-38 | 1.4-10.7 | 700-1470 | 38.6 | / | 10 | 240 |
| 50ZJL-A20J | 30 | 18-70 | 5.6-46.2 | 1440-2950 | 33.8 | / | 22 | 570 |
| 40ZJL-A35 | 18.5 | 9.4-47.6 | 8.1-48.0 | 700-1470 | 38.7 | / | 7 | 500 |
| 40ZJL-B25 | 4 | 4.9-22.9 | 4.0-21.5 | 700-1440 | 37.6 | / | 8 | 225 |
| 40ZJL-B25B | 5.5 | 4.9-24.2 | 3.5-19.1 | 700-1440 | 30.4 | / | 8 | 225 |
| 40ZJL-A21 | 4 | 4.6-25.9 | 3.3-17.0 | 700-1440 | 44.6 | / | 10 | 210 |
| 40ZJL-A21B | 4 | 5.8-25.2 | 2.5-14.6 | 700-1440 | 36.6 | / | 10 | 210 |
Application
-Sump pump for pumping sewage in coal washery, metallurgy dressing works, power plant ash-handling system.
