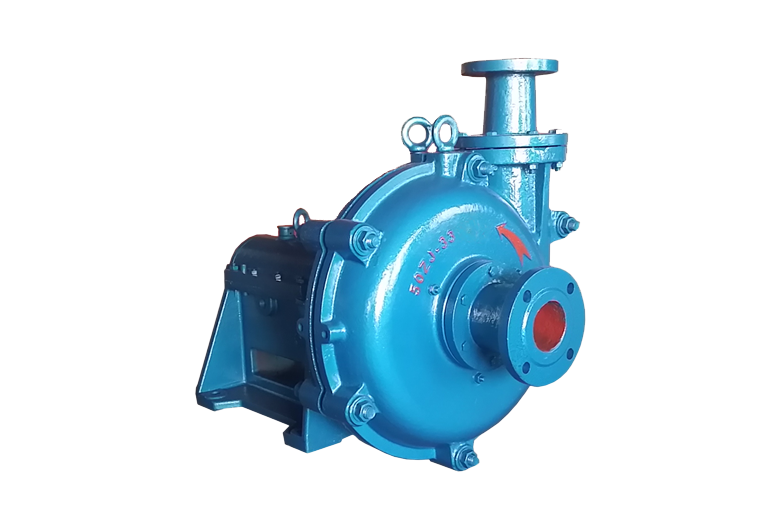

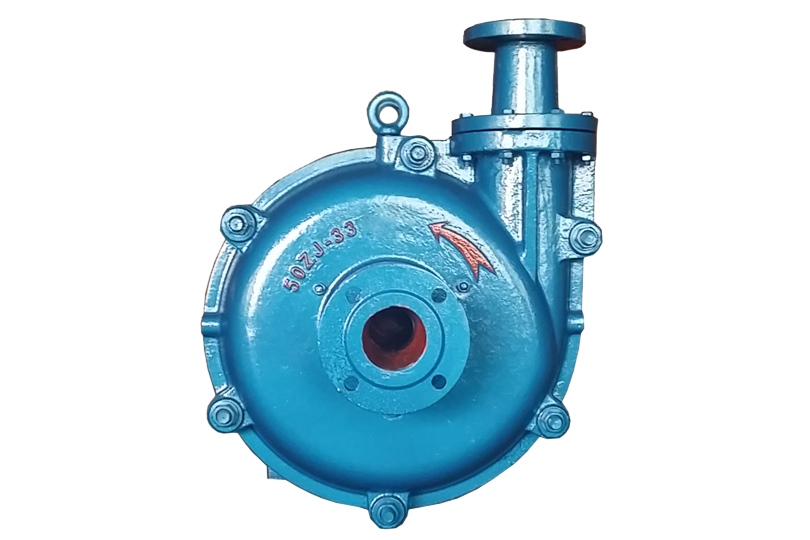

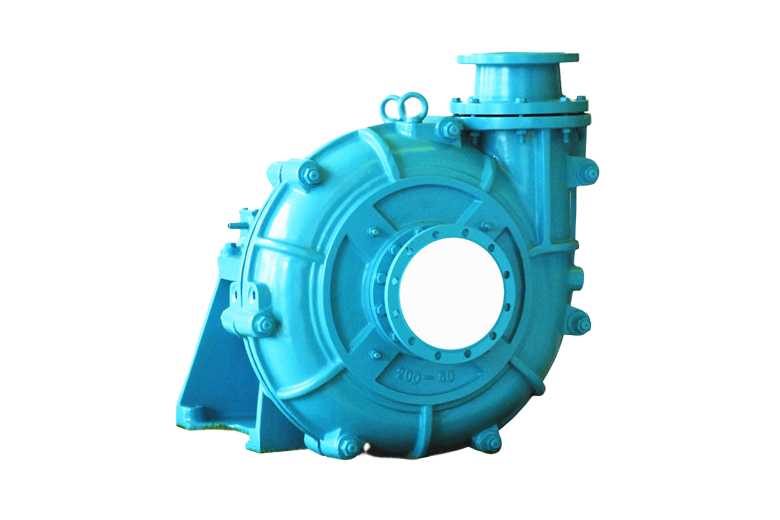

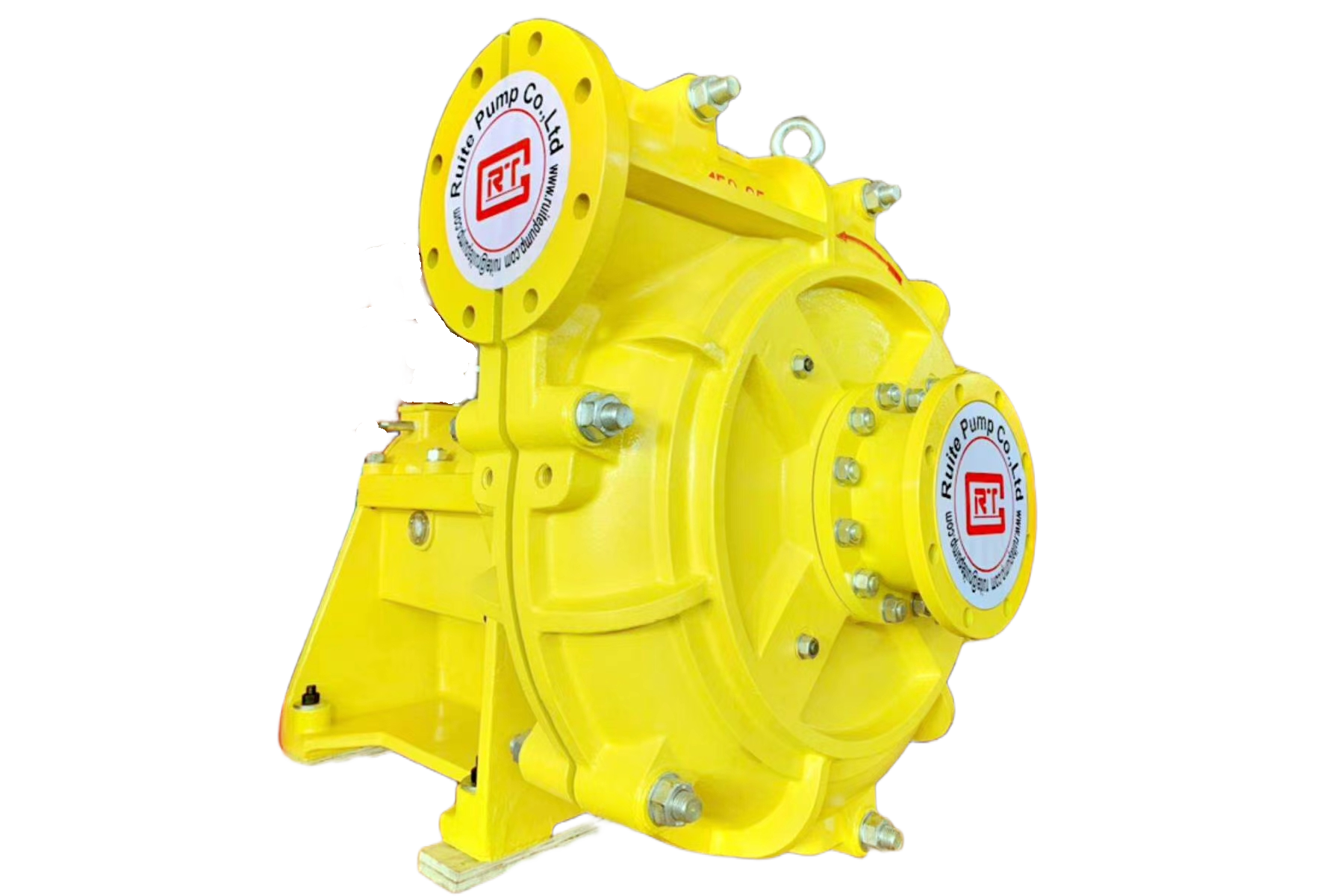

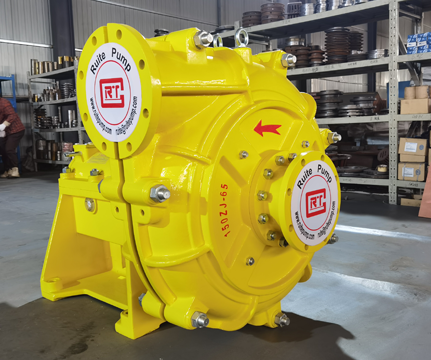

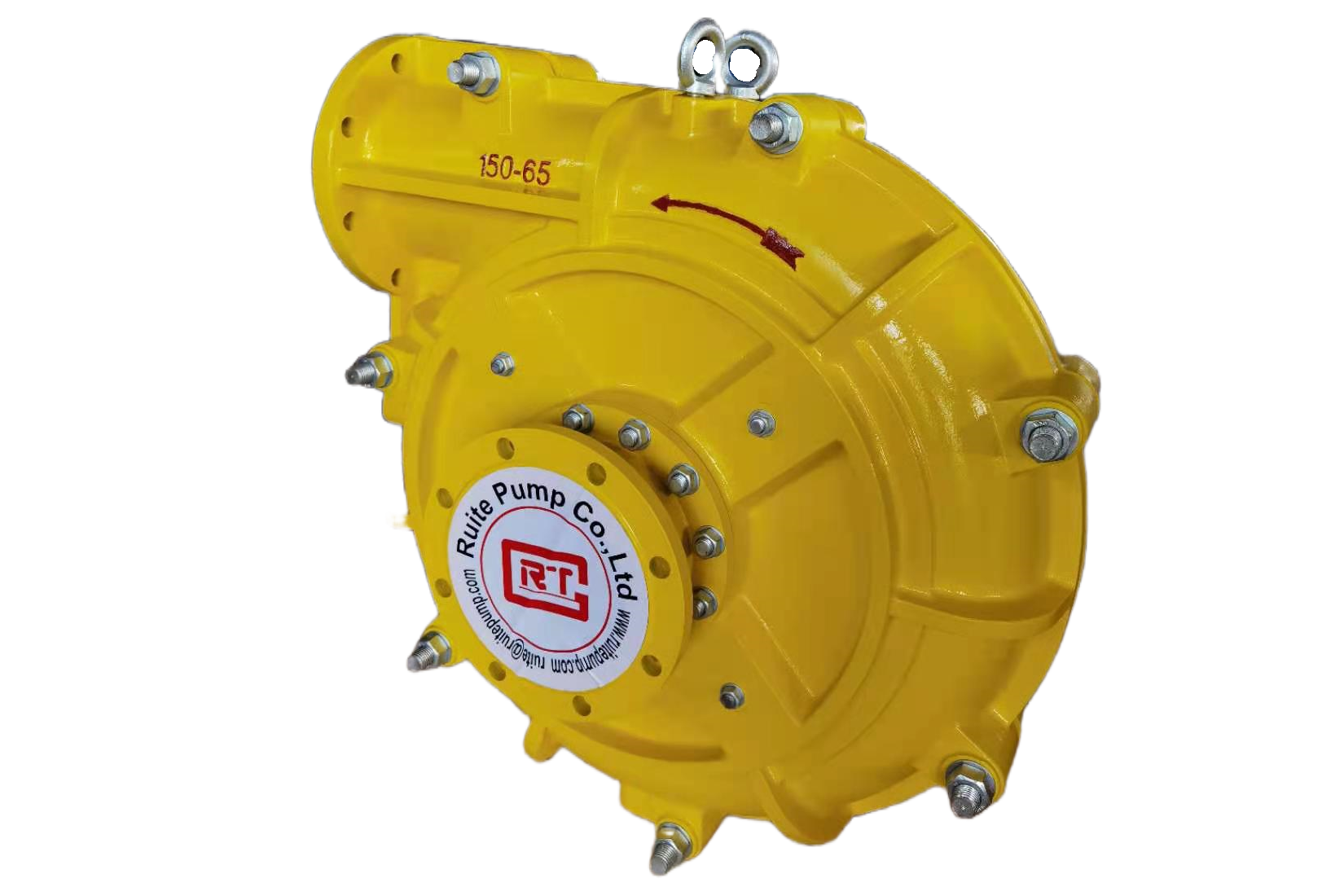

ZJ Series Horizontal Slurry Pump

The ZJ Series slurry pumps are designed with high chrome alloy materials heavy duty slurry pump specifically designed to accommodate large quantities of abrasive and solids with particles at high flows.

Typically used in the mining, beneficiation, metallurgy industry units are designed to handle liquids chemical slurries, mud, lime , fly ash, gravel and mineral products. Applications range from transfer to filter press feed, and blasting.

The ZJ series of pumps are manufactured utilising oversized bearings of heavy duty design. Bearings can be grease or oil lubricated. Designs are available in a variety materials to accommodate all slurry types and can be directly motor driven or belt driven depending on application.

Structural Features:

- Single stage, single suction, double-case, horizontal centrifugal pump;

- Wet parts such as casing, impeller, liner plate in anti-abrasion high chrome cast iron alloy;

- The rotating assembly adopts standard bracket structure;

- Packing or mechanical seal; Sealing system cooled by pumped liquid or external cooling fluid. Expeller seal creates a hydrodynamic seal by creating an area of low pressure around the shaft. Expeller seals improve shaft sleeve lifetime and minimises water use. This combination ensures at low rpms and when the pump is stopped that the unit does not leak.

- The wet parts such as casing, impeller are thickened, the impeller channel is widened, generally designed as 3 or 4 vanes, to increase the flow area, reduce the flow rate of slurry in the channel, so as to improve the service life of the wet parts under severe abrasion conditions, suitable for the transportation of heavy abrasion slurry in various industries;

- Hydraulic optimization design, high-efficient, energy-saving and stable operation;

- Strong flow capacity. The pump can pump gravel, high plastic clay lumps and so on;

- The whole machine has high reliability and remarkable economic benefits.In the design process of the whole machine, every problem-prone part needs full consideration and optimization design to greatly raise  trouble-free working time. The pump has advantages of simple structure and easy to dismantle and maintain. This can reduce labor  intensity and workload, and increase economic benefits.

Performance and Main Technical Datas ofZJ Slurry Pumps

Application

- Coal washery, coal preparation plant

- Metallurgy dressing works

- Alumina refinery, alumina plant

- Ball mill recirculation pump

- Heavy duty hydro cyclone feed pump

- Power plant ash handling system

- Special abrasion condition
