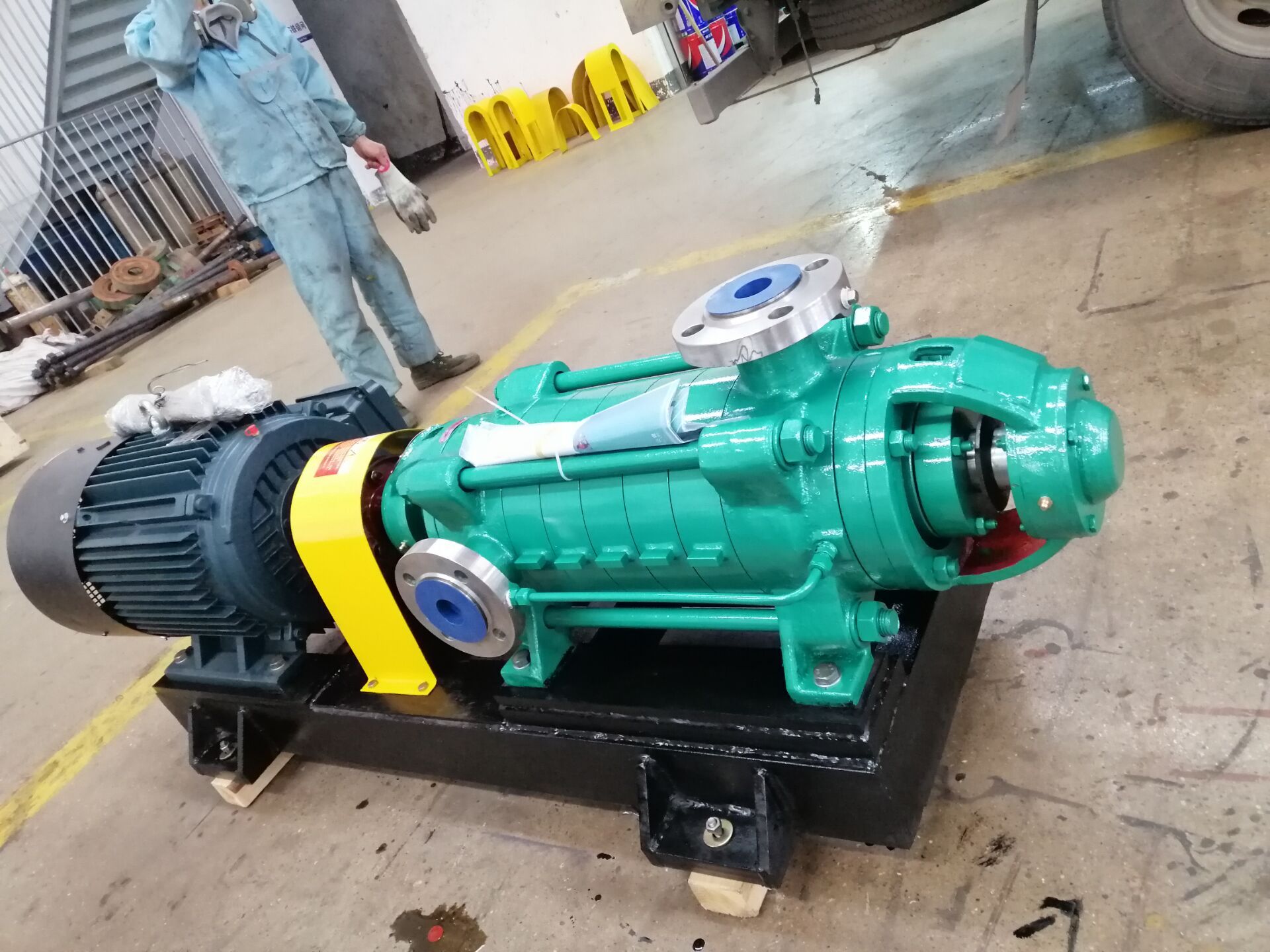

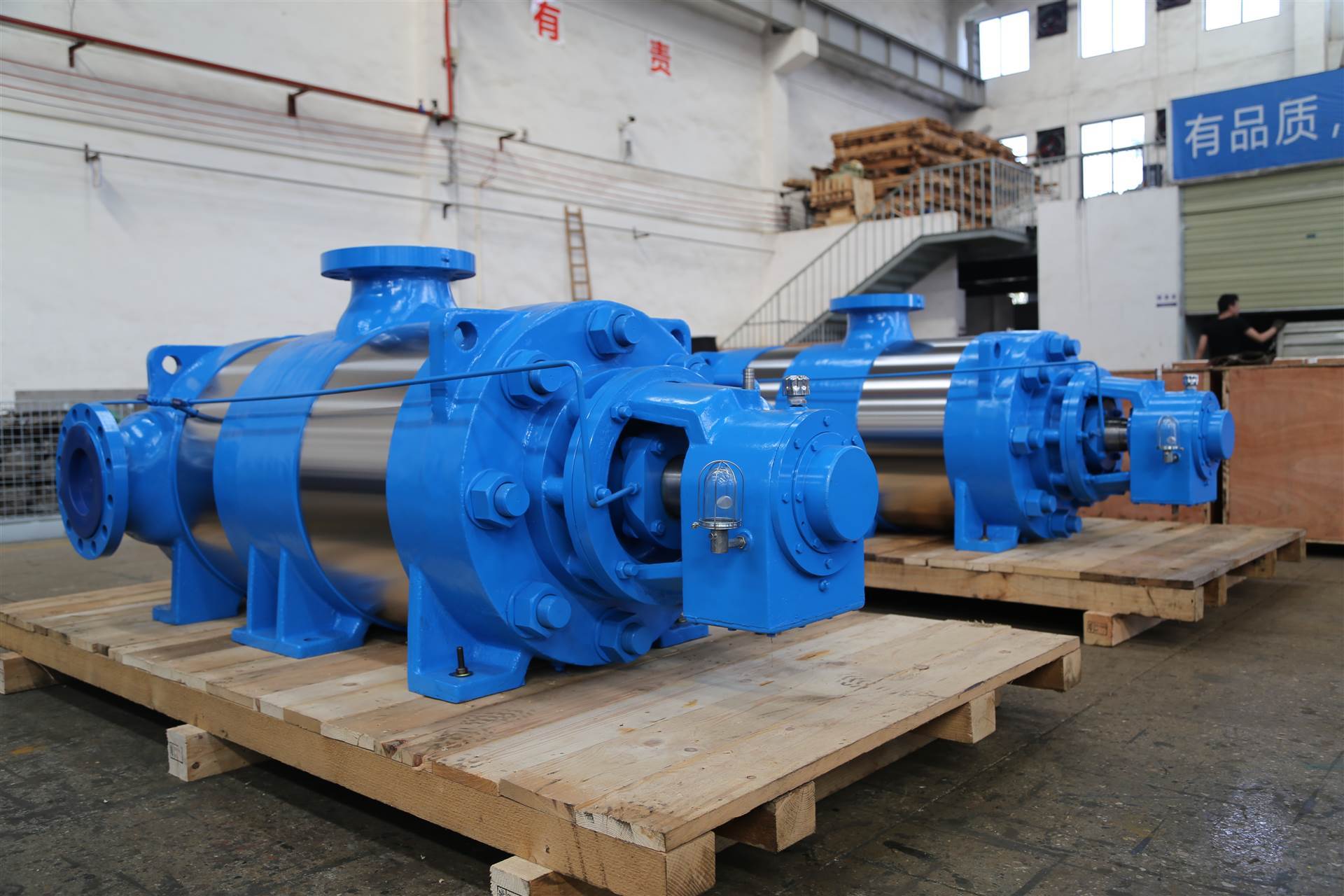

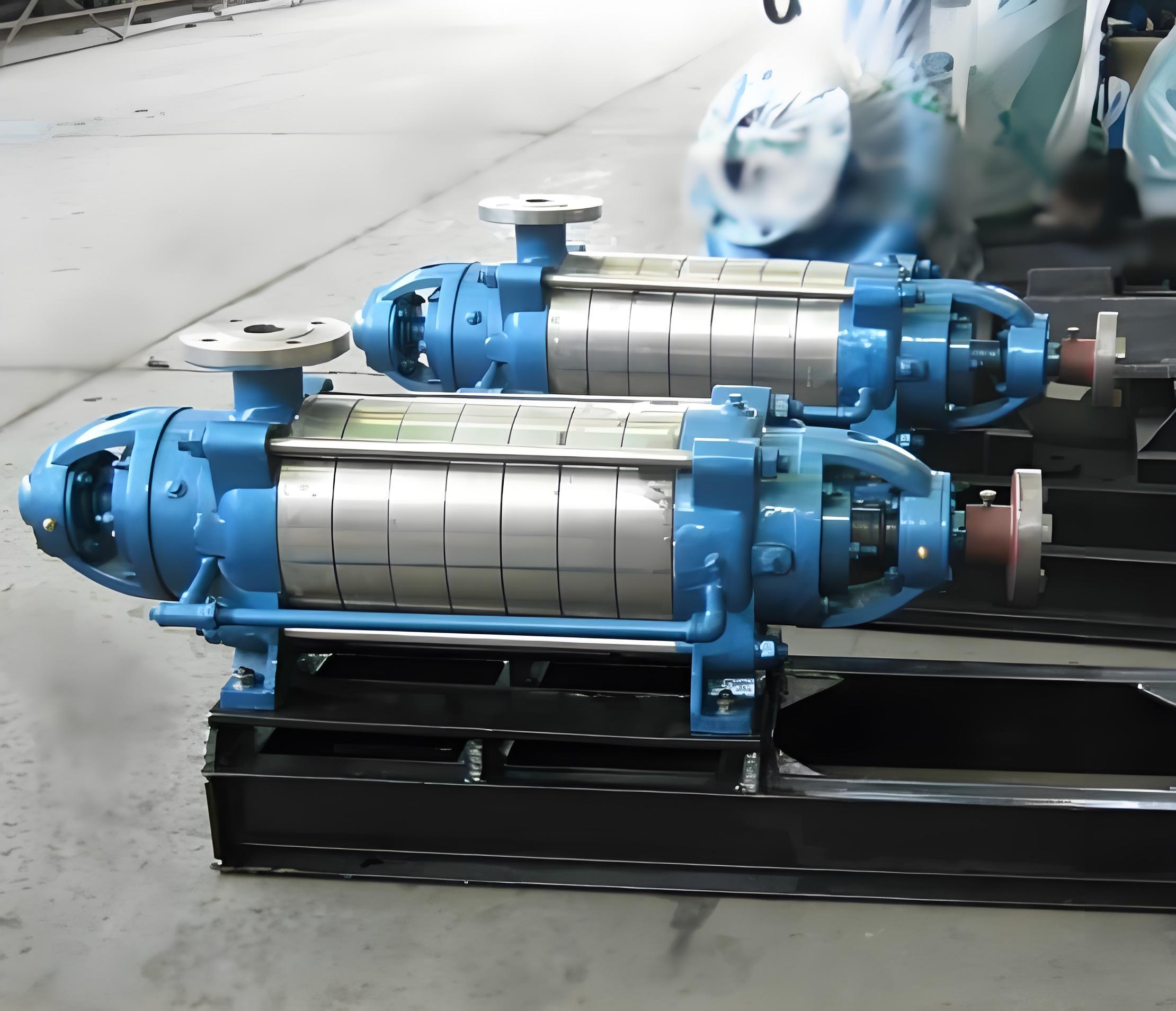

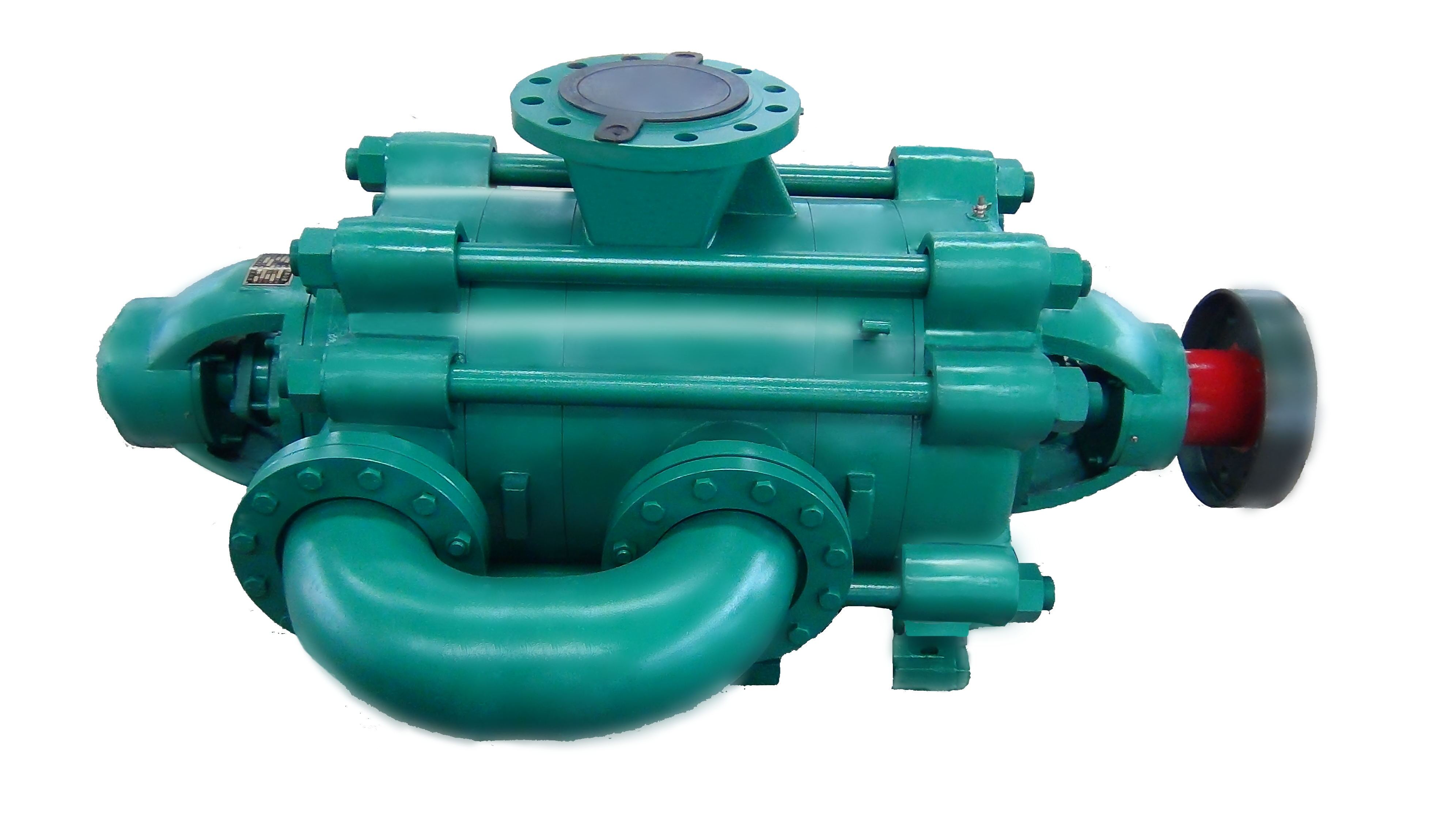

DF Stainless steel multistage pump

DF type horizontal corrosion-resistant stainless steel multistage pump supply -20℃~105℃ does not contain solid particles, corrosive liquid, pump inlet allowable pressure of 0.6MPa

Capacity

3.7-1350m³/h

Head

49-1800m

Power

3-1120kw

Efficiency

32%-84%

Description

DF horizontal corrosion-resistant stainless steel multistage pump supply -20℃~105℃ does not contain solid particles, corrosive liquid, pump inlet allowable pressure of 0.6MPa

DF horizontal stainless steel multistage centrifugal pump of the flow parts materials are cast steel and cast stainless steel (304, 316, 316L, 2205, 2507, etc.) two categories, order should be based on the name of the conveying medium, concentration, import pressure, use temperature, the degree of corrosion of the material, reasonable selection of pump material, seal type and pump structure.

DF performance parameters

TYPE	Capacity (m³/h)	Head (m)	Efficiency (%)	Power (kw)
DF6-25	3.75~7.5	70.35~320.3	36~49.5	5.5~18.5
DF6-50	3.75~7.5	144~624	28~30	15~55
DF6-80	3.75~7.5	225~982	32~36	15~75
DF12-25	7.5~15	68.3~325.3	43.3~52.1	7.5~30
DF12-50	7.5~15	142.7~635	30.6~44.6	18.5~75
DF12-80	7.5~15	225~982	37~40	30~132
DF25-30	15~30	77.7~418.8	55.2~56.9	15~55
DF25-50	15~30	144~618	44~54	22~110
DF25-80	15~30	228~1013	47~56	37~160
DF46-30	30~55	76.2~429	60~66.8	22~90
DF46-50	30~55	138.3~658.8	53.6~64.5	37~160
DF46-80	30~55	228~1056	59~65	55~250
80D12	21.6~39.6	19~129.6	69~75	4~18.5
DF65-80	50~75	228~1056	60~67	75~315
100D16	37.6~72	20.4~178.2	66~73	7.5~37
DF85-45	55~100	121.8~612	64.2~70.4	55~200
DF85-67	55~100	186.9~888	56.1~68.4	90~315
DF85-80	55~100	228~1056	59~71	110~450
DF85-150	55~100	429~1872	53~60	220~900
DF100-25	72~119	46~270	63.4~69	30~132
DF100-55	85~120	147~708	64.4~68	90~315
DF120-50	96~140	126.9~654	72~78	90~280
DF120-67	96~140	183~840	62~71	110~450
DF120-80	96~140	216~1056	61.6~70.4	132~560
DF120-100	96~140	261.6~1320	69.5~73	220~900
125D25	72~119	35~230.4	70.5~77.5	22~90
DF150-50	120~180	127.5~660	72~75	110~400
DF150-80	120~180	228~1056	65~75	185~710
DF150-100	120~180	261.6~1320	69.5~73	220~900
DF150-130	120~180	354~1644	62.5~64	315~1250
DF155-30 (150D30)	100~185	81.6~400.8	65.5~73.2	75~250
DF155-67	100~185	179.4~895.2	63~74	132~560
DF200-50	132~240	135~696	78~81	132~500
DF200-80	132~240	216~1044	70.9~75	220~900
DF200-100	132~240	252~1356	70~76	250~1000
DF280-43 (200D43)	185~335	116.1~564	70.5~76.7	160~630
DF280-65 (200D65)	185~335	184.5~816	63.3~74	250~1000
DF280-95	185~335	273~1200	68~72.5	400~1600
DF280-100	185~335	279~1248	58.6~72.6	400~1600
DF300-65	240~350	180~828	69.2~69.5	315~1120
DF360-40	300~440	106.5~504	77~80	185~710
DF360-60	300~440	157.5~768	71~74.5	355~1250
DF360-95	300~440	267~1224	70~73	500~2000
DF420-95	350~500	263~1192	67.9~71	560~2240
DF450-40	330~500	112.5~528	73.9~76.9	220~1000
DF450-60 (250D60)	335~500	162.9~765.6	74.1~78.9	355~1400
DF450-95	335~500	267~1200	72~75	560~2240
DF500-57	375~555	109.6~717.6	69.7~82.6	220~1400
DF550-40	400~600	76~528	75.1~78.4	185~1120
DF550-50	400~600	95~660	75.1~77.8	220~1400
DF550-95	400~600	182~1230	70.9~72.4	450~2800
DF580-60	450~640	113~780	75.5~76.8	280~1800
DF580-100	450~640	190~1284	70~74	500~2800
DF600-60	450~710	104~780	79~82	280~1800
DF600-85	450~710	162~1092	72.4~73.6	450~2800
DF650-80	540~715	154~1005	73.5~75.5	450~2800
DF650-100	540~715	193~1256	79.2~83	500~2800
DF720-60	550~850	106.8~738.1	79.2~82.4	355~2240
DF720-80	550~850	149~931.8	72.9~76	630~2800
DF720-100	550~850	186~1059	76.5~84	560~2800
DF800-80	620~900	150~951.5	73~81	500~2800
