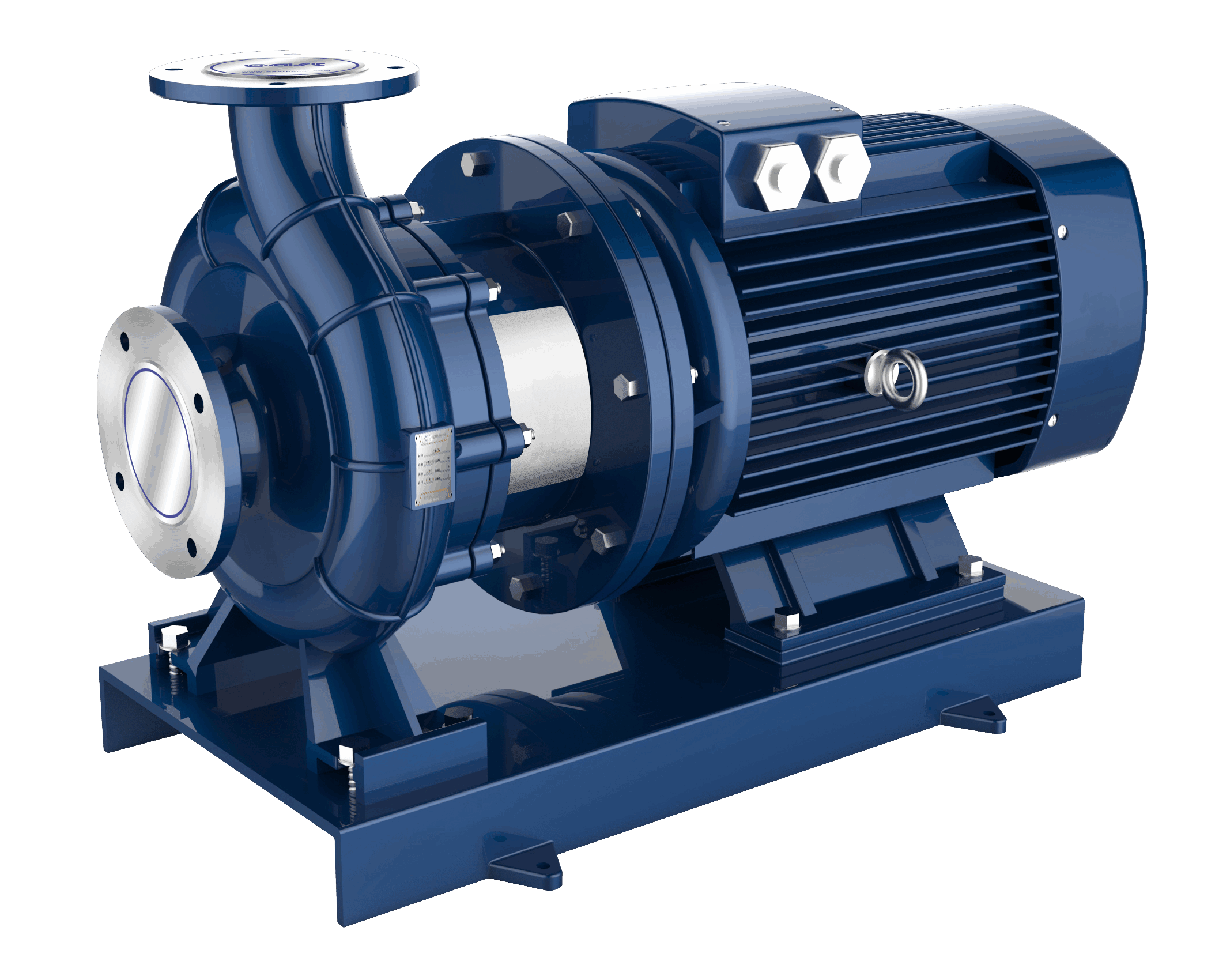

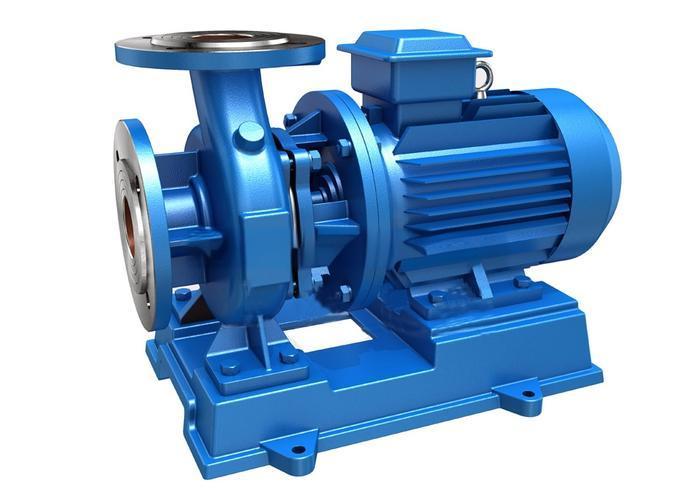

ISW horizontal water pump

ISW horizontal water pump is used for conveying water and other liquids with physical and chemical properties similar to water. It is suitable for industrial and urban water supply and drainage, pressurized water supply of high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC refrigeration cycle, bathroom and other cold and warm water cycle pressurization and equipment supporting. The operating temperature is T≤80℃.
Description
ISW Horizontal pipeline pump is used for conveying water and other liquids with physical and chemical properties similar to water. It is suitable for industrial and urban water supply and drainage, pressurized water supply of high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC refrigeration cycle, bathroom and other cold and warm water cycle pressurization and equipment supporting. The operating temperature is T≤80℃.

Horizontal pipeline pump operating conditions
1. Suction pressure ≤1.0MPa, or high working pressure of the pump system ≤1.6MPa, that is, suction pressure + pump head ≤1.6MPa, pump static pressure test pressure ≤2.5MPa, please indicate the system working pressure when ordering. When the working pressure of the pump system is greater than 1.6MPa, it should be proposed separately at the time of ordering, so that the flow part and the connection part of the pump are made of cast steel.
2. Ambient temperature < 40 ° C, relative humidity < 40%.
3. The volume content of solid particles in the conveying medium does not exceed 0.1 per unit volume, and the particle size is < 0.2mm.
Note: If the medium is with fine particles, please indicate when ordering, so that the manufacturer uses wear-resistant mechanical seals.

Horizontal pipeline pump features
Smooth operation: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation and no vibration.
Watertight: cemented carbide seals of different materials ensure that there is no leakage in the transmission of different media.
Low noise: The pump supported by two low noise bearings runs smoothly, except for the weak sound of the motor, basically no noise.
Low failure rate: simple and reasonable structure, the key parts of the international first-class quality supporting, the whole machine trouble-free working time is greatly improved.
Easy maintenance: replace seal, bearing, simple and convenient.
More economical: The exit can be left, right and upward in three directions, which is convenient for pipeline layout and installation and saves space.

序号 型号 流量 扬程
(m)
效率
(%)
转速
(r/min)
电机功率
(kW)
必须汽蚀余量
(NPSH)r
重量
(kg)
(m³/h) (L/s)
1 20-110 1.8 0.5 16 25 2800 0.37 2.3 25
2.5 0.69 15 34 2800 0.37 2.3
3.3 0.91 13.5 35 2800 0.37 2.3
2 20-160 1.8 0.5 33 19 2900 0.75 2.3 29
2.5 0.69 32 25 2900 0.75 2.3
3.3 0.91 30 23 2900 0.75 2.3
3 25-110 2.8 0.78 16 34 2900 0.55 2.3 26
4 1.11 15 42 2900 0.55 2.3
5.2 1.44 13.5 41 2900 0.55 2.3
4 25-125 2.8 0.78 20.6 28 2900 0.75 2.3 28
4 1.11 20 36 2900 0.75 2.3
5.2 1.44 18 35 2900 0.75 2.3
5 25-125A 2.5 0.69 17 35 2900 0.55 2.3 27
3.6 1 16 35 2900 0.55 2.3
4.6 1.28 14.4 35 2900 0.55 2.3
6 25-160 2.8 0.78 33 24 2900 1.5 2.3 39
4 1.11 32 24 2900 1.5 2.3
5.2 1.44 30 24 2900 1.5 2.3
7 25-160A 2.6 0.12 29 31 2900 1.1 2.3 34
3.7 1.03 28 31 2900 1.1 2.3
4.9 1.36 26 31 2900 1.1 2.3
8 32-100 4.5 12.5 12.5 44 2900 0.55 2 27
9 32-100(I) 4.4 1.22 13.2 48 2900 0.75 2 32
6.3 1.75 12.5 54 2900 0.75 2
8.3 2.32 11.3 53 2900 0.75 2
10 32-125 3.5 0.97 22 40 2900 0.75 2.3 28
5 1.39 20 44 2900 0.75 2.3
6.5 1.8 18 42 2900 0.75 2.3
11 32-125A 3.1 0.86 17.6 43 2900 0.55 2.3
4.5 1.25 16 43 2900 0.55 2.3
5.8 1.61 14.4 43 2900 0.55 2.3
12 32-160 6.5 5 32 44 2900 1.5 2.3 39
13 32-160A 4 1.1 25 34 2900 1.1 2 38
14 32-160(I) 4.4 1.22 33.2 34 2900 2.2 2 47
6.3 1.75 32 40 2900 2.2 2
8.3 2.32 30.2 42 2900 2.2 2
15 32-200 4.5 12.5 50 32 2900 3 2 55
16 32-200(I) 4.4 1.22 50.5 26 2900 4 2 43
6.3 1.75 50 33 2900 4 2
8.3 2.32 48 35 2900 4 2
17 32-200A 2.8 0.78 44.6 34 2900 2.2 2 74
4 1.11 44 40 2900 2.2 2
5.2 1.44 42.7 42 2900 2.2 2
18 40-100 4.4 1.22 13.2 48 2900 0.55 2.3 32
6.3 1.75 12.5 54 2900 0.55 2.3
8.3 2.31 11.3 53 2900 0.55 2.3
19 40-100A 3.9 1.08 10.6 52 2900 0.37 2.3
5.6 1.56 10 52 2900 0.37 2.3
7.4 2.06 9 52 2900 0.37 2.3
20 40-125 4.4 1.22 21 41 2900 1.1 2.3 34
6.3 1.75 20 46 2900 1.1 2.3
8.3 2.31 18 43 2900 1.1 2.3
21 40-125A 3.9 1.08 17.6 40 2900 0.75 2.3 33
5.6 1.56 16 45 2900 0.75 2.3
7.4 2.06 14.4 41 2900 0.75 2.3
22 40-160 4.4 1.22 33 35 2900 2.2 2.3 47
6.3 1.75 32 40 2900 2.2 2.3
8.3 2.31 30 40 2900 2.2 2.3
23 40-160A 4.1 1.14 29 34 2900 1.5 2.3 43
5.9 1.64 28 39 2900 1.5 2.3
7.8 2.17 26.3 39 2900 1.5 2.3
24 40-160B 3.8 1.06 25.5 34 2900 1.1 2.3 38
5.5 1.53 24 38 2900 1.1 2.3
7.2 2 22.5 37 2900 1.1 2.3
25 40-200 4.4 1.22 51 26 2900 4 2.3 74
6.3 1.75 50 33 2900 4 2.3
8.3 2.31 48 32 2900 4 2.3
26 40-200A 4.1 1.14 45 36 2900 3 2.3 62
5.9 1.64 44 31 2900 3 2.3
7.8 2.17 42 30 2900 3 2.3
27 40-200B 3.7 1.03 38 29 2900 2.2 2.3 52
5.3 1.47 36 29 2900 2.2 2.3
7 1.94 34.5 29 2900 2.2 2.3
28 40-250 4.4 1.22 82 24 2900 7.5 2.3 105
6.3 1.75 80 28 2900 7.5 2.3
8.3 2.31 74 28 2900 7.5 2.3
29 40-250A 4.1 1.14 72 24 2900 5.5 2.3 98
5.9 1.64 70 28 2900 5.5 2.3
7.8 2.17 65 27 2900 5.5 2.3
30 40-250B 3.7 1.06 61.5 23 2900 4 2.3 77
5.3 1.53 60 27 2900 4 2.3
7 1.94 56 26 2900 4 2.3
31 40-100(I) 8.8 2.44 13.2 55 2900 1.1 2.3 34
12.5 3.47 12.5 62 2900 1.1 2.3
16.3 4.53 11.3 60 2900 1.1 2.3
32 40-100(I)A 8 2.22 10.6 60 2900 0.75 2.3 32
11 3.05 10 60 2900 0.75 2.3
14.5 4.03 9 60 2900 0.75 2.3
33 40-125(I) 8.8 2.44 21.2 49 2900 1.5 2.3 38
12.5 3.47 20 58 2900 1.5 2.3
16.3 4.53 17.8 57 2900 1.5 2.3
34 40-125(I)A 8 2.22 17 57 2900 1.1 2.3 33
11 3.05 16 57 2900 1.1 2.3
14.5 4.03 14 57 2900 1.1 2.3
35 40-160(I) 8.8 2.44 33 45 2900 3 2.3 56
12.5 3.47 32 52 2900 3 2.3
16.3 4.53 30 51 2900 3 2.3
36 40-160(I)A 8.2 2.28 29 44 2900 2.2 2.3 47
11.7 3.25 28 51 2900 2.2 2.3
15.2 4.22 26 50 2900 2.2 2.3
37 40-160(I)B 7.3 2.38 23 50 2900 1.5 2.3 43
10.4 2.89 22 50 2900 1.5 2.3
13.5 3.75 20.5 50 2900 1.5 2.3
38 40-200(I) 8.8 2.44 51.2 38 2900 5.5 2.3 85
12.5 3.47 50 46 2900 5.5 2.3
16.3 4.53 48 46 2900 5.5 2.3
39 40-200(I)A 8.3 2.31 45 37 2900 4 2.3 75
11.7 3.25 44 45 2900 4 2.3
15.3 4.25 42 45 2900 4 2.3
40 40-200(I)B 7.5 2.08 37 44 2900 3 2.3 63
10.6 2.94 36 44 2900 3 2.3
13.8 3.83 34 44 2900 3 2.3
41 40-250(I) 8.8 2.44 81.2 31 2900 11 2.3 145
12.5 3.47 80 38 2900 11 2.3
16.3 4.53 77.5 40 2900 11 2.3
42 40-250(I)A 8.2 2.28 71 38 2900 7.5 2.3 95
11.7 3.22 70 38 2900 7.5 2.3
15.2 4.22 68 38 2900 7.5 2.3
43 40-250(I)B 7.6 2.11 61.4 37 2900 5.5 2.3 94
10.8 3 60 37 2900 5.5 2.3
14 3.89 58 37 2900 5.5 2.3
44 40-250(I)C 7.1 1.97 53.2 36 2900 5.5 2.3 88
10 2.78 52 36 2900 5.5 2.3
13.1 3.64 50.4 36 2900 5.5 2.3
45 50-100 8.8 2.44 13.6 55 2900 1.1 2.3 36
12.5 3.47 12.5 62 2900 1.1 2.3
16.3 4.53 11.3 60 2900 1.1 2.3
46 50-100A 8 2.22 11 60 2900 0.75 2.3 35
11 3.05 10 60 2900 0.75 2.3
14.5 4.03 9 60 2900 0.75 2.3
47 50-125 8.8 2.44 21.5 49 2900 1.5 2.3 43
12.5 3.47 20 58 2900 1.5 2.3
16.3 4.53 17.8 57 2900 1.5 2.3
48 50-125A 8 2.22 17 57 2900 1.1 2.3 38
11 3.05 16 57 2900 1.1 2.3
14.5 4.03 14 57 2900 1.1 2.3
49 50-160 8.8 2.44 33 45 2900 3 2.3 59
12.5 3.47 32 52 2900 3 2.3
16.3 4.53 30 51 2900 3 2.3
50 50-160A 8.2 2.28 29 44 2900 2.2 2.3 51
11.7 3.25 28 51 2900 2.2 2.3
15.2 4.22 26 50 2900 2.2 2.3
51 50-160B 7.3 2.38 23 50 2900 1.5 2.3 47
10.4 2.89 22 50 2900 1.5 2.3
13.5 3.75 20.5 50 2900 1.5 2.3
52 50-200 8.8 2.44 52 38 2900 5.5 2.3 101
12.5 3.47 50 46 2900 5.5 2.3
16.3 4.53 48 46 2900 5.5 2.3
53 50-200A 8.3 2.31 45.8 37 2900 4 2.3 80
11.7 3.25 44 45 2900 4 2.3
15.3 4.25 48 45 2900 4 2.3
54 50-200B 7.5 2.08 37 44 2900 3 2.3 68
10.6 2.94 36 44 2900 3 2.3
13.8 3.83 34 44 2900 3 2.3
55 50-250 8.8 2.44 82 29 2900 11 2.3 160
12.5 3.47 80 38 2900 11 2.3
16.3 4.53 77.5 40 2900 11 2.3
56 50-250A 8.2 2.28 71.5 38 2900 7.5 2.3 115
11.6 3.22 70 38 2900 7.5 2.3
15.2 4.22 68 38 2900 7.5 2.3
57 50-250B 7.6 2.11 61.4 37 2900 5.5 2.3 114
10.8 3 60 37 2900 5.5 2.3
14 3.89 58 37 2900 5.5 2.3
58 50-250C 7.1 1.97 53.2 36 2900 5.5 2.3 108
10 2.78 52 36 2900 5.5 2.3
13.1 3.64 50.4 36 2900 5.5 2.3
59 50-100(I) 17.5 4.86 13.7 67 2900 1.5 2.5 41
25 6.94 12.5 69 2900 1.5 2.5
32.5 9.03 10.5 69 2900 1.5 2.5
60 50-100(I)A 15.6 4.3 11 65 2900 1.1 2.5 36
22.3 6.19 10 67 2900 1.1 2.5
29 8.1 8.4 68 2900 1.1 2.5
61 50-125(I) 17.5 4.86 21.5 60 2900 3 2.5 56
25 6.94 20 68 2900 3 2.5
32.5 9.03 18 67 2900 3 2.5
62 50-125(I)A 15.6 4.33 17 58 2900 2.2 2.5 48
22.3 6.19 16 66 2900 2.2 2.5
29 8.1 13.6 65 2900 2.2 2.5
63 50-160(I) 17.5 4.68 34.4 54 2900 4 2.5 72
25 6.94 32 63 2900 4 2.5
32.5 9.03 27.5 60 2900 4 2.5
64 50-160(I)A 16.4 4.56 30 54 2900 3 2.5 71
23.4 6.5 28 62 2900 3 2.5
30.4 8.44 24 59 2900 3 2.5
65 50-160(I)B 15 4.17 26 58 2900 2.2 2.5 59
21.6 6 24 58 2900 2.2 2.5
28 7.78 20.6 58 2900 2.2 2.5
66 50-200(I) 17.5 4.86 52.7 49 2900 7.5 2.5 108
25 6.94 50 58 2900 7.5 2.5
32.5 9.03 45.5 59 2900 7.5 2.5
67 50-200(I)A 16.4 4.56 46.4 48 2900 5.5 2.5 107
23.5 6.53 44 57 2900 5.5 2.5
30.5 8.47 40 58 2900 5.5 2.5
68 50-200(I)B 15.2 4.22 40 55 2900 4 2.5 100
21.8 6.06 38 55 2900 4 2.5
28.3 7.86 34.5 55 2900 4 2.5
69 50-250(I) 17.5 4.86 82 39 2900 15 2.5 175
25 6.94 80 50 2900 15 2.5
32.5 9.03 76.5 52 2900 15 2.5
70 50-250(I)A 16.4 4.56 71.5 39 2900 11 2.5 165
23.4 6.5 70 50 2900 11 2.5
30.5 8.47 67 52 2900 11 2.5
71 50-250(I)B 15 4.17 61 38 2900 7.5 2.5
21.6 6 60 49 2900 7.5 2.5
28 7.78 57.4 54 2900 7.5 2.5
72 50-315(I) 17.5 4.86 128 30 2900 30 2.5 310
25 6.94 125 40 2900 30 2.5
32.5 9.03 122 44 2900 30 2.5
73 50-315(I) A 16.6 4.16 115 30 2900 22 2.5 245
23.7 6.58 113 40 2900 22 2.5
31 8.6 110 44 2900 22 2.5
74 50-315(I) B 15.7 4.36 39 2900 18.5 2.5 215
22.5 6.25 101 39 2900 18.5 2.5
29.2 8 39 2900 18.5 2.5
75 50-315(I) C 14.4 4 86 38 2900 15 2.5 195
20.6 5.72 85 38 2900 15 2.5
26.8 7.44 83 38 2900 15 2.5
76 65-100 17.5 4.86 13.7 67 2900 1.5 2.5 46
25 6.94 12.5 69 2900 1.5 2.5
32.5 9.03 10.5 69 2900 1.5 2.5
77 65-100A 15.6 4.3 11 65 2900 1.1 2.5 41
22.3 6.19 10 67 2900 1.1 2.5
29 8.1 8.4 68 2900 1.1 2.5
78 65-125 17.5 4.86 21.5 60 2900 3 2.5 58
25 6.94 20 68 2900 3 2.5
32.5 9.03 18 67 2900 3 2.5
79 65-125A 15.6 4.33 17 58 2900 2.2 2.5 49
22.3 6.19 16 66 2900 2.2 2.5
29 8.1 14.4 65 2900 2.2 2.5
80 65-160 17.5 4.86 34.4 54 2900 4 2.5 75
25 6.94 32 63 2900 4 2.5
32.5 9.03 27.5 60 2900 4 2.5
81 65-160A 16.4 4.56 30 54 2900 3 2.5
23.4 6.5 28 62 2900 3 2.5
30.4 8.44 24 59 2900 3 2.5
82 65-160B 15 4.17 26 58 2900 2.2 2.5 63
21.6 6 24 58 2900 2.2 2.5
28 7.78 20.6 58 2900 2.2 2.5
83 65-200 17.5 4.86 52.7 49 2900 7.5 2.5 107
25 6.94 50 58 2900 7.5 2.5
32.5 9.03 45.5 59 2900 7.5 2.5
84 65-200A 16.4 4.56 46.4 48 2900 5.5 2.5
23.5 6.53 44 57 2900 5.5 2.5
30.5 8.47 40 58 2900 5.5 2.5
85 65-200B 15.2 4.22 40 55 2900 4 2.5 100
21.8 6.06 38 55 2900 4 2.5
28.3 7.86 34.5 55 2900 4 2.5
86 65-250 17.5 4.86 82 39 2900 15 2.5 180
25 6.94 80 50 2900 15 2.5
32.5 9.03 76.5 52 2900 15 2.5
87 65-250A 16.4 4.56 71.5 39 2900 11 2.5 170
23.4 6.5 70 50 2900 11 2.5
30.5 8.47 67 52 2900 11 2.5
88 65-250B 15 4.17 61 38 2900 7.5 2.5
21.6 6 60 49 2900 7.5 2.5
28 7.78 57.4 54 2900 7.5 2.5
89 65-315 17.5 4.86 127 32 2900 30 2.5 320
25 6.94 125 40 2900 30 2.5
32.5 9.03 122 44 2900 30 2.5
90 65-315A 16.6 4.61 115 32 2900 22 2.5 255
23.7 6.58 113 40 2900 22 2.5
31 8.6 110 44 2900 22 2.5
91 65-315B 15.7 4.36 103 39 2900 18.5 2.5
22.5 6.25 101 39 2900 18.5 2.5
29.2 8 98 39 2900 18.5 2.5
92 65-315C 14.4 4 86 38 2900 15 2.5 205
20.6 5.72 85 38 2900 15 2.5
26.8 7.44 83 38 2900 15 2.5
93 65-100(I) 35 9.72 13.8 67 2900 3 3 63
50 13.9 12.5 73 2900 3 3
65 18.1 10 70 2900 3 3
94 65-100(I)A 31.3 8.7 11 66 2900 2.2 3 53
44.7 12.4 10 72 2900 2.2 3
58 16.1 8 69 2900 2.2 3
95 65-125(I) 35 9.72 22 67 2900 5.5 3 99
50 13.9 20 72 2900 5.5 3
65 18.1 17 70 2900 5.5 3
96 65-125(I)A 31.3 8.7 17.5 66 2900 4 3 78
45 12.5 16 71 2900 4 3
58 16.1 13.6 69 2900 4 3
97 65-160(I) 35 9.27 35 63 2900 7.5 3 103
50 13.9 32 71 2900 7.5 3
65 18.1 28 70 2900 7.5 3
98 65-160(I)A 32.7 9.1 30.6 62 2900 5.5 3
46.7 13 28 70 2900 5.5 3
61 16.9 24 69 2900 5.5 3
99 65-160(I)B 30.3 8.4 26 69 2900 4 3 97
43.3 12 24 69 2900 4 3
56.3 15.6 21 69 2900 4 3
100 65-200(I) 35 9.72 53.5 55 2900 15 3 176
50 13.1 50 67 2900 15 3
65 16.9 46 68 2900 15 3
101 65-200(I)A 32.8 9.1 47 54 2900 11 3 166
47 13.1 44 66 2900 11 3
61 16.9 40 67 2900 11 3
102 65-200(I)B 30.5 8.5 40.6 65 2900 7.5 3 114
43.5 12.1 38 65 2900 7.5 3
56.6 15.7 33.4 65 2900 7.5 3
103 65-250(I) 35 9.72 83 52 2900 22 3 235
50 13.9 80 59 2900 22 3
65 18.1 72 60 2900 22 3
104 65-250(I)A 32.5 9 73 52 2900 18.5 3 105
46.7 13 70 59 2900 18.5 3
61 16.9 63 60 2900 18.5 3
105 65-250(I)B 30 8.3 62 58 2900 15 3 180
43.3 12 60 58 2900 15 3
56 15.6 54 58 2900 15 3
106 65-315(I) 35 9.27 128 44 2900 37 3 350
50 13.9 125 54 2900 37 3
65 18.1 121 57 2900 37 3
107 65-315(I)A 32.5 9 112.6 43 2900 30 3 335
46.5 12.9 110 54 2900 30 3
60.5 16.8 106.4 57 2900 30 3
108 65-315(I)B 31 8.6 102.5 53 2900 30 3
44.5 12.4 100 53 2900 30 3
58 16.1 98 53 2900 30 3
109 65-315(I)C 29 8.1 87 51 2900 22 3 270
41 11.4 85 51 2900 22 3
53.6 14.9 83 51 2900 22 3
110 80-100 35 9.72 13.8 67 2900 3 3 63
50 13.9 12.5 73 2900 3 3
65 18.1 10 70 2900 3 3
111 80-100A 31.3 8.7 11 66 2900 2.2 3 54
44.7 12.5 10 72 2900 2.2 3
58 16.1 8 69 2900 2.2 3
112 80-125 35 9.72 22 67 2900 5.5 3 99
50 13.9 20 72 2900 5.5 3
65 18.1 17 70 2900 5.5 3
113 80-125A 31.3 8.7 17.5 66 2900 4 3 79
45 12.5 16 71 2900 4 3
58 16.1 13.6 69 2900 4 3
114 80-160 35 9.72 35 63 2900 7.5 3 105
50 13.9 32 71 2900 7.5 3
65 18.1 28 70 2900 7.5 3
115 80-160A 32.7 9.1 30.6 62 2900 5.5 3
46.7 13 28 70 2900 5.5 3
61 16.9 24 69 2900 5.5 3
116 80-160B 30.3 8.4 26 69 2900 4 3 98
43.3 12 24 69 2900 4 3
56.3 15.6 21 69 2900 4 3
117 80-200 35 9.72 53.5 55 2900 15 3 175
50 13.9 50 67 2900 15 3
65 18.1 46 68 2900 15 3
118 80-200A 32.8 9.1 47 54 2900 11 3 165
47 13.1 44 66 2900 11 3
61 16.9 40 67 2900 11 3
119 80-200B 30.5 8.5 40.6 65 2900 7.5 3 115
43.5 12.1 38 65 2900 7.5 3
56.6 15.7 33.4 65 2900 7.5 3
120 80-250 35 9.72 83 52 2900 22 3 240
50 13.9 80 59 2900 22 3
65 18.1 72 60 2900 22 3
121 80-250A 32.5 9 73 52 2900 18.5 3 210
46.7 13 70 59 2900 18.5 3
61 16.9 63 60 2900 18.5 3
122 80-250B 30 8.3 62 58 2900 15 3 185
43.3 12 60 58 2900 15 3
56 15.6 54 58 2900 15 3
123 80-315 35 9.72 128 43 2900 37 3 355
50 13.9 125 54 2900 37 3
65 18.1 122 57 2900 37 3
124 80-315A 32.5 9 112.6 43 2900 30 3 340
46.5 12.9 110 54 2900 30 3
60.5 16.8 107.4 57 2900 30 3
125 80-315B 31 8.6 102.5 53 2900 30 3
44.5 12.4 100 53 2900 30 3
58 16.1 98 53 2900 30 3
126 80-315C 29 8.1 98 51 2900 22 3 275
41 11.4 85 51 2900 22 3
53.6 14.9 83 51 2900 22 3
127 80-350 35 9.72 146 55 2900 55 3 570
50 13.9 150 66 2900 55 3
65 18.1 142 67 2900 55 3
128 80-350A 31 8.6 138.4 65 2900 45 3 470
44.5 12.4 142 65 2900 45 3
58 16.1 134.8 65 2900 45 3
129 80-350B 29 8.1 131.4 63 2900 37 3 440
41 11.4 135 63 2900 37 3
53.6 14.9 127.8 63 2900 37 3
130 80-100(I) 70 19.4 13.6 66 2900 5.5 4.5 108
100 27.8 12.5 76 2900 5.5 4.5
130 36.1 11 75 2900 5.5 4.5
131 80-100(I)A 62.6 17.4 11 64 2900 4 4.5 87
89 24.7 10 74 2900 4 4.5
116 32.2 8.8 74 2900 4 4.5
132 80-125(I) 70 19.4 23.5 70 2900 11 4.5 163
100 27.8 20 76 2900 11 4.5
130 36.1 14 65 2900 11 4.5
133 80-125(I)A 62.6 17.4 19 68 2900 7.5 4.5 113
89 24.7 16 74 2900 7.5 4.5
116 32.2 11 65 2900 7.5 4.5
134 80-160(I) 70 19.4 36.5 70 2900 15 4.5 184
100 27.8 32 76 2900 15 4.5
130 36.1 24 65 2900 15 4.5
135 80-160(I)A 65.4 18.2 32 68 2900 11 4.5 174
93.5 26 28 74 2900 11 4.5
121.6 33.8 21 67 2900 11 4.5
136 80-160(I)B 60.6 16.8 27 72 2900 7.5 4.5
86.6 24.1 24 72 2900 7.5 4.5
112.5 31.3 18 72 2900 7.5 4.5
137 80-200(I) 70 19.4 54 65 2900 22 4.5 251
100 27.8 50 74 2900 22 4.5
130 36.1 42 73 2900 22 4.5
138 80-200(I)A 65.4 18.2 47.5 67 2900 18.5 4.5 220
93.5 26 44 73 2900 18.5 4.5
121.6 33.8 37 72 2900 18.5 4.5
139 80-200(I)B 61 16.9 41 71 2900 15 4.5 198
87 24.2 38 71 2900 15 4.5
113 31.4 32 71 2900 15 4.5
140 80-250(I)B 61 16.9 65 66 2900 22 4 315
87 24.2 60 66 2900 22 4
113 31.4 51 66 2900 22 4
141 80-315(I) 70 19.4 132 55 2900 75 4 675
100 27.8 125 66 2900 75 4
130 36.1 114 67 2900 75 4
142 80-315(I)A 66.5 18.5 119 55 2900 55 4 535
95 26.4 113 66 2900 55 4
123.6 34.3 103 67 2900 55 4
143 80-315(I)B 63 17.5 106.6 65 2900 45 4 420
90 25 101 65 2900 45 4
117 32.5 92 65 2900 45 4
144 80-315(I)C 58 16.1 90 63 2900 37 4 366
82 22.8 85 63 2900 37 4
107 29.7 76 63 2900 37 4
145 100-100 70 19.4 13.6 66 2900 5.5 4.5 113
100 27.8 12.5 76 2900 5.5 4.5
130 36.1 11 75 2900 5.5 4.5
146 100-100A 62.6 17.4 11 64 2900 4 4.5 91
89 47 10 74 2900 4 4.5
116 32.2 8.8 74 2900 4 4.5
147 100-125 70 19.4 23.5 70 2900 11 4.5 169
100 27.8 20 76 2900 11 4.5
130 36.1 14 65 2900 11 4.5
148 100-125A 62.6 17.4 19 68 2900 7.5 4.5 118
89 24.7 16 74 2900 7.5 4.5
116 32.2 11 63 2900 7.5 4.5
149 100-160 70 19.4 36.5 70 2900 15 4.5 191
100 27.8 32 76 2900 15 4.5
130 36.1 24 65 2900 15 4.5
150 100-160A 65.4 18.2 32 68 2900 11 4.5 181
93.5 26 28 74 2900 11 4.5
121.6 33.8 21 67 2900 11 4.5
151 100-160B 60.6 16.8 27 72 2900 7.5 4.5
86.6 24.1 24 72 2900 7.5 4.5
112.5 31.3 18 72 2900 7.5 4.5
152 100-200 70 19.4 54 65 2900 22 4 245
100 27.8 50 74 2900 22 4
130 36.1 42 73 2900 22 4
153 100-200A 65.4 18.2 47.5 64 2900 18.5 4 215
93.5 26 44 73 2900 18.5 4
121.6 33.8 37 72 2900 18.5 4
154 100-200B 61 16.9 41 71 2900 15 4 193
87 24.2 38 71 2900 15 4
113 31.4 32 71 2900 15 4
155 100-250 70 19.4 87 62 2900 37 4 345
100 27.8 80 69 2900 37 4
130 36.1 68 68 2900 37 4
156 100-250A 65.4 18.2 76 61 2900 30 4 330
93.5 26 70 68 2900 30 4
121.6 33.8 59.5 67 2900 30 4
157 100-250B 61 16.9 65 66 2900 22 4
87 24.2 60 66 2900 22 4
113 31.4 51 66 2900 22 4
158 100-315 70 19.4 132 55 2900 75 4 689
100 27.8 125 66 2900 75 4
130 36.1 114 67 2900 75 4
159 100-315A 66.5 18.5 119 65 2900 55 4 549
95 26.4 113 66 2900 55 4
123.6 34.3 103 67 2900 55 4
160 100-315B 63 17.5 106.6 65 2900 45 4 439
90 25 101 65 2900 45 4
117 32.5 92 65 2900 45 4
161 100-315C 58 16.1 90 63 2900 37 4 385
82 22.8 85 63 2900 37 4
107 29.7 76 63 2900 37 4
162 100-100(I) 96 26.7 14 64 2900 11 4.5 115
160 44.4 12.5 73 2900 11 4.5
192 53.3 10 70 2900 11 4.5
163 100-125(I) 96 26.7 24 62 2900 15 4.5 168
160 44.4 20 74 2900 15 4.5
192 53.3 14 69 2900 15 4.5
164 100-125(I)A 84 23.3 20 64 2900 11 4.5
140 39 17 72 2900 11 4.5
168 46.7 12 68 2900 11 4.5
165 100-160(I) 96 26.7 36 69 2900 22 5.6 210
160 44.4 32 79 2900 22 5.6
192 53.3 27 75 2900 22 5.6
166 100-160(I)A 84 23.3 32 66 2900 18.5 5
140 39 28 76 2900 18.5 5
168 46.7 23.5 72 2900 18.5 5
167 100-200(I) 96 26.7 53 69 2900 37 5.2 402
160 44.4 50 79 2900 37 5.2
192 53.3 45 78 2900 37 5.2
168 100-200(I)A 84 23.3 48 64 2900 30 4.5 395
140 39 45 74 2900 30 4.5
168 46.7 40 73 2900 30 4.5
169 100-200(I)B 60 16.7 43 72 2900 22 4.5 360
100 27.8 40 72 2900 22 4.5
120 33.3 36 72 2900 22 4.5
170 100-250(I) 96 26.7 83 65 2900 55 4.8 560
160 44.4 80 77 2900 55 4.8
192 53.3 72 74 2900 55 4.8
171 100-250(I)A 84 23.3 75 60 2900 45 4.5 420
140 39 72 72 2900 45 4.5
168 46.7 65 69 2900 45 4.5
172 100-250(I)B 60 16.7 68 70 2900 37 4.5 400
100 27.8 65 70 2900 37 4.5
120 33.3 58 70 2900 37 4.5
173 100-350 60 16.7 153.6 72 2900 90 4 950
100 27.8 150 57 2900 90 4
120 33.3 142 74 2900 90 4
174 100-350A 61 16.9 145.6 75 2900 75 4 830
87 24.2 142 75 2900 75 4
113 31.4 134 75 2900 75 4
175 100-350B 58 16.1 138.6 75 2900 55 4 600
82 22.8 135 75 2900 55 4
107 29.7 127 75 2900 55 4
176 125-100 96 26.7 13 82 2900 11 4 180
160 44.4 12.5 82 2900 11 4
192 53.3 12 82 2900 11 4
177 125-100A 86 23.9 10.4 77 2900 7.5 4 125
143 39.7 10 77 2900 7.5 4
172 47.8 9.6 77 2900 7.5 4
178 125-125 96 26.7 22.6 80 2900 15 4 220
160 44.4 20 80 2900 15 4
192 53.3 17 80 2900 15 4
179 125-125A 86 23.9 18 77 2900 11 4 210
143 39.7 16 77 2900 11 4
172 47.8 13.6 77 2900 11 4
180 125-160 96 26.7 36 78 2900 22 4 265
160 44.4 32 78 2900 22 4
192 53.3 28 78 2900 22 4
181 125-160A 90 25 31.5 76 2900 18.5 4 230
150 41.7 28 76 2900 18.5 4
180 50 24.5 76 2900 18.5 4
182 125-160B 83 21.7 27 73 2900 15 4 215
138 38.3 24 73 2900 15 4
166 46.1 21 73 2900 15 4
183 125-200 96 26.7 55 77 2900 37 5.5 395
160 44.4 50 77 2900 37 5.5
192 53.3 46 77 2900 37 5.5
184 125-200A 90 25 48.4 76 2900 30 5.5 380
150 41.7 44 76 2900 30 5.5
180 50 40.5 76 2900 30 5.5
185 125-200B 83 21.7 41.3 75 2900 22 5.5 320
138 38.3 37.5 75 2900 22 5.5
166 46.1 34.5 75 2900 22 5.5
186 125-250 96 26.7 87 75 2900 55 5 580
160 44.4 80 75 2900 55 5
192 53.3 73 75 2900 55 5
187 125-250A 90 25 76 74 2900 45 5.5 490
150 41.7 70 74 2900 45 5.5
180 50 84 74 2900 45 5.5
188 125-250B 83 21.7 65 73 2900 37 5.5 430
138 38.3 60 73 2900 37 5.5
166 46.1 55 73 2900 37 5.5
189 125-315 96 26.7 133 70 2900 90 5 790
160 44.7 125 70 2900 90 5
192 53.3 119 70 2900 90 5
190 125-315A 90 25 117 70 2900 75 5 710
150 41.7 110 70 2900 75 5
180 50 104.6 70 2900 75 5
191 125-315B 86 23.9 106.4 69 2900 75 5 705
143 39.7 100 69 2900 75 5
172 47.8 95.2 69 2900 75 5
192 125-315C 80.5 22.4 96 67 2900 55 5 585
134 37.2 88 67 2900 55 5
161 44.7 86 67 2900 55 5
193 150-125 96 26.7 22.6 66 2900 11 4 210
160 44.7 24 76 2900 11 4
192 53.3 17 76 2900 11 4
194 150-125A 90 25 18 77 2900 7.5 4 130
150 41.7 16 77 2900 7.5 4
180 50 13.6 77 2900 7.5 4
195 150-160 96 26.7 36 75 2900 22 4 270
160 44.4 32 75 2900 22 4
192 53.3 27 75 2900 22 4
196 150-160A 90 25 32 76 2900 18.5 4 230
150 41.7 28 76 2900 18.5 4
180 50 23.5 76 2900 18.5 4
197 150-160B 84 23.3 27 73 2900 15 4 220
140 39 24 73 2900 15 4
168 46.7 21 73 2900 15 4
198 150-200 140 38.9 13.8 68 1450 15 3 265
200 55.6 12.5 78 1450 15 3
260 72.2 10.6 78 1450 15 3
199 150-200A 125 34.7 11 66 1450 11 3 244
176 49.7 10 76 1450 11 3
232.5 64.6 8.5 76 1450 11 3
200 150-200B 84 23.3 41 75 2900 22 4 275
140 39 38 75 2900 22 4
168 46.7 34 75 2900 22 4
201 150-250 140 38.9 21.8 73 1450 18.5 3 300
200 55.6 20 79 1450 18.5 3
260 72.2 17 77 1450 18.5 3
202 150-250A 129 35.8 18.5 72 1450 15 3 262
184.4 51.2 17 78 1450 15 3
240 66.7 14.4 76 1450 15 3
203 150-250B 117 32.5 15.2 76 1450 11 3 241
167 46.4 14 76 1450 11 3
217.5 60.4 12 76 1450 11 3
204 150-315 140 38.9 33.8 70 1450 30 2.5 410
200 55.6 32 78 1450 30 2.5
260 72.2 28 73 1450 30 2.5
205 150-315A 131 36.4 29.5 69 1450 22 3.5 335
187 51.9 28 77 1450 22 3.5
243 67.5 24.5 77 1450 22 3.5
206 150-315B 121 33.5 25 76 1450 18.5 3.5 315
173 48.1 24 76 1450 18.5 3.5
225 62.5 21 76 1450 18.5 3.5
207 150-350 96 26.7 153.6 80 2900 110 5.5 970
160 44.4 150 80 2900 110 5.5
192 53.3 142.8 80 2900 110 5.5
208 150-350A 90 25 145.6 70 2900 90 5.2 790
150 41.7 142 70 2900 90 5.2
180 50 134.8 70 2900 90 5.2
209 150-350B 84 23.3 138.6 65 2900 75 5.5 705
140 39 135 76 2900 75 5.5
168 46.7 127.8 74 2900 75 5.5
210 150-400 140 38.9 53 68 1450 45 3.5 490
200 55.6 50 75 1450 45 3.5
260 72.2 44 71 1450 45 3.5
211 150-400A 131 36.4 46.6 67 1450 37 3.5 454
187 51.9 44 74 1450 37 3.5
243 67.5 38.3 70 1450 37 3.5
212 150-400B 122 33.9 40 73 1450 30 3.5 435
174 48.3 38 73 1450 30 3.5
226.5 62.9 33 73 1450 30 3.5
213 150-400C 112 31.1 34 71 1450 22 3.5 365
160 44.4 32 71 1450 22 3.5
208 57.8 28 71 1450 22 3.5
214 150-250(I) 120 33.3 87 65 2900 75 4.5 702
200 55.6 80 76 2900 75 4.5
240 66.7 72 74 2900 75 4.5
215 150-250(I)A 112 31.1 76 64 2900 55 4.5 561
187 51.9 70 75 2900 55 4.5
224 62.2 63 73 2900 55 4.5
216 150-250(I)B 104 28.9 65 63 2900 45 4.5 460
173 48.1 60 74 2900 45 4.5
208 57.8 54 72 2900 45 4.5
217 150-315(I) 120 33.3 133 58 2900 110 4.5 980
200 55.6 125 73 2900 110 4.5
240 66.7 120 75 2900 110 4.5
218 150-315(I)A 112 31.1 116 57 2900 90 4.5 800
187 51.9 110 72 2900 90 4.5
224 62.2 105 74 2900 90 4.5
219 150-315(I)B 104 28.9 100 55 2900 75 4.5 724
173 48.1 95 70 2900 75 4.5
208 57.8 91 72 2900 75 4.5
220 200-200 140 38.9 13.8 68 1450 15 3 265
200 55.6 12.5 78 1450 15 3
260 72.2 10.6 78 1450 15 3
221 200-200A 125 34.7 11 66 1450 11 3 244
179 49.7 10 76 1450 11 3
232.5 64.6 8.5 76 1450 11 3
222 200-250 140 38.9 21.8 73 1450 18.5 3 305
200 55.6 20 79 1450 18.5 3
260 72.2 17 77 1450 18.5 3
223 200-250A 129 35.8 18.5 72 1450 15 3 267
184.4 51.2 17 78 1450 15 3
240 66.7 14.4 76 1450 15 3
224 200-250B 117 32.5 15.2 76 1450 11 3 246
167 46.4 14 76 1450 11 3
217.5 60.4 12 76 1450 11 3
225 200-315 140 38.9 33.8 70 1450 30 3.5 417
200 55.6 32 78 1450 30 3.5
260 72.2 28 78 1450 30 3.5
226 200-315A 131 36.4 29.5 69 1450 22 3.5 342
189 51.9 28 77 1450 22 3.5
243 67.5 24.5 77 1450 22 3.5
227 200-315B 121 33.6 25 76 1450 18.5 3.5 322
173 48.1 24 76 1450 18.5 3.5
225 62.5 21 76 1450 18.5 3.5
228 200-400 140 38.9 53 68 1450 45 3.5 498
200 55.6 50 75 1450 45 3.5
260 72.2 44 71 1450 45 3.5
229 200-400A 131 36.4 46.6 67 1450 37 3.5 462
187 51.9 44 74 1450 37 3.5
243 67.5 38.3 70 1450 37 3.5
230 200-400B 122 33.9 40 73 1450 30 3.5 443
174 48.6 38 73 1450 30 3.5
226.5 62.9 33 73 1450 30 3.5
231 200-400C 112 31.3 34 71 1450 22 3.5 373
160 44.4 32 71 1450 22 3.5
208 57.8 28 71 1450 22 3.5
232 200-200(I) 280 77.8 13.4 70 1450 22 4 382
400 111.1 12.5 80 1450 22 4
520 144 10.5 79 1450 22 4
233 200-200(I)A 250 69.4 10.7 68 1450 18.5 4 346
358 99.4 10 78 1450 18.5 4
465 129.2 8.5 77 1450 18.5 4
234 200-250(I) 280 77.8 22.2 75 1450 30 4 475
400 111.4 20 80 1450 30 4
520 144 14 72 1450 30 4
235 200-250(I)A 250 69.4 18 73 1450 22 4 405
358 99.6 14 78 1450 22 4
465 129.2 11.2 70 1450 22 4
236 200-250(I)B 226 62.8 14.4 70 1450 18.5 4 387
322 89.4 13 75 1450 18.5 4
419 116.4 7.3 67 1450 18.5 4
237 200-315(I) 280 77.8 36 73 1450 55 4 675
400 111.4 32 80 1450 55 4
520 144 26 75 1450 55 4
238 200-315(I)A 262 72.8 31.5 72 1450 45 4 560
374 103.9 28 79 1450 45 4
486 135 23 74 1450 45 4
239 200-315(I)B 242 67.2 27 78 1450 37 4 535
346 96.1 24 78 1450 37 4
450 125 19.5 78 1450 37 4
240 200-400(I) 280 77.8 54.5 75 1450 75 4 830
400 111.4 50 81 1450 75 4
520 144 39 77 1450 75 4
241 200-400(I)A 262 72.8 48 80 1450 75 4
374 103.9 44 80 1450 75 4
486 135 34 80 1450 75 4
242 200-400(I)B 242 67.2 41.4 78 1450 55 5 685
346 96.1 38 78 1450 55 5
450 125 29.6 78 1450 55 5
243 200-400(I)C 224 62.2 34.9 76 1450 45 5 580
320 88.9 32 76 1450 45 5
416 115.6 25 76 1450 45 5
244 250-250 350 97.2 22 78 1450 45 5 620
550 152.8 20 82 1450 45 5
650 180.5 16 81 1450 45 5
245 250-250A 300 83.3 18.3 76 1450 37 5 550
500 139 17 80 1450 37 5
600 166.7 14 80 1450 37 5
246 250-235 300 83.3 14 73 1480 22 4.5 410
500 139 12.5 78 1480 22 4.5
600 166.7 11 70 1480 22 4.5
247 250-300 300 83.3 22 78 1480 37 4.5 550
500 139 20 78 1480 37 4.5
600 166.7 16 78 1480 37 4.5
248 250-315 350 97.2 34 76 1450 75 5.5 890
550 152.8 32 80 1450 75 5.5
650 180.5 28 79 1450 75 5.5
249 250-315A 300 83.3 29.5 74 1450 55 5.5 690
500 139 28 78 1450 55 5.5
600 166.7 24 77 1450 55 5.5
250 250-315B 260 72.2 25 70 1450 45 5.5 620
450 125 24 74 1450 45 5.5
520 144.4 20 72 1450 45 5.5
251 250-400 300 83.3 54.5 72 1480 90 4.5 1530
500 139 50 72 1480 90 4.5
600 166.7 39 72 1480 90 4.5
252 300-235 540 150 20.5 77 1450 55 5 1075
720 200 18 81 1450 55 5
900" 250 15 74 1450 55 5
253 300-235A 450 125 17.2 74 1450 45 5 970
600 166 15 79 1450 45 5
720 200 12.5 77 1450 45 5
254 300-235B 420 116.7 14.3 73 1450 37 5 925
540 150 12.8 78 1450 37 5
650 181 10.5 70 1450 37 5
255 300-250 540 150 22.5 80 1450 55 6 1085
720 200 20 83 1450 55 6
900 250 17 84 1450 55 6
256 300-250A 450 136 19.5 81 1450 45 6 980
600 166 17 81 1450 45 6
720 200 14 81 1450 45 6
257 300-300 540 150 32 82 1480 75 5 1230
720 200 28 82 1480 75 5
900 250 23 82 1480 75 5
258 300-300A 450 125 27.5 80 1480 75 5 1095
600 166 24 80 1480 75 5
720 200 20 80 1480 75 5
259 300-300B 420 116.7 24 78 1480 55 5 980
540 150 21 78 1480 55 5
650 181 17 78 1480 55 5
260 300-315 540 150 35 84 1480 90 4.5 1350
720 200 32 84 1480 90 4.5
900 250 26 84 1480 90 4.5
261 300-315A 460 127.8 31.5 80 1480 75 4.5 1240
650 180 28 80 1480 75 4.5
800 222 23.5 80 1480 75 4.5
262 300-315B 420 116.7 27 78 1480 55 4.5 1100
580 161 24 78 1480 55 4.5
700 194 20 78 1480 55 4.5
263 300-380 480 133.3 48 84 970 132 5 1900
720 200 44 84 970 132 5
900 250 34 84 970 132 5
264 300-380A 444 123.3 41.4 80 970 110 5 1700
666 185 38 80 970 110 5
833 231.4 30 80 970 110 5
265 300-380B 400 113.6 35 78 970 90 5 1530
614 170.6 32 78 970 90 5
764 213.1 35 78 970 90 5
266 300-390 540 150 20.5 78 980 55 5 1300
720 200 18 81 980 55 5
900 250 15.5 76 980 55 5
267 300-390A 450 126 17.2 77 980 45 5 1220
600 167 15 79 980 45 5
720 200 12.8 75 980 45 5
268 300-390B 400 111 14 74 980 37 5 1100
540 150 12.5 77 980 37 5
650 180 11.5 76 980 37 5
269 300-400 450 125 55 78 1480 110 5 1500
600 166 50 78 1480 110 5
720 200 42.5 78 1480 110 5
270 300-480 540 150 31 79 980 75 5
720 200 28 81 980 75 5
900 250 24 80 980 75 5
271 300-480A 450 126 27.4 78 980 75 5 1280
600 166 24 80 980 75 5
720 200 20 79 980 75 5
272 300-480B 400 111 24 79 980 55 5 1180
540 150 21 79 980 55 5
650 180 17 79 980 55 5
273 350-235 600 167 14 80 1480 37 4.5 1050
800 222 12.5 83 1480 37 4.5
960 267 10.5 82 1480 37 4.5
274 350-300 600 167 22.5 79 1480 55 4.5 1230
800 222 20 82 1480 55 4.5
960 267 17.5 71 1480 55 4.5
275 350-315 600 167 35.5 84 1480 90 4.5 1650
800 222 32 84 1480 90 4.5
960 267 28.5 84 1480 90 4.5
276 350-400 600 167 55 83 1480 160 4.5 1950
800 222 50 83 1480 160 4.5
960 267 45.5 83 1480 160 4.5
277 400-300 820 228 23 78 1480 90 6 1570
1080 300 20 78 1480 90 6
1300 361 16 78 1480 90 6
278 400-315 820 205 36.5 76 1480 132 6 1880
1080 300 32 76 1480 132 6
1300 344 27 76 1480 132 6
279 500-300 1000 277.8 23 80 1480 110 6 1800
1200 333 20 80 1480 110 6
1450 403 16 80 1480 110 6
280 500-315 1000 278 34.5 78 1480 160 6 2070
1200 333 32 78 1480 160 6
1450 403 27 78 1480 160 6
  • ISW horizontal water pump
  • ISW horizontal water pump
REQUEST MORE DETAILS
Please fill out the form below and click the button to request more information about
FirstName*
LastName*
Email*
Message*
Leave a message
FirstName*
LastName*
Email*
Message*
Message Us
