PURPOSE

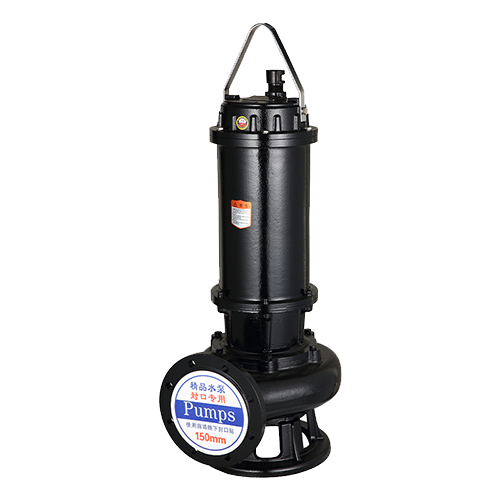

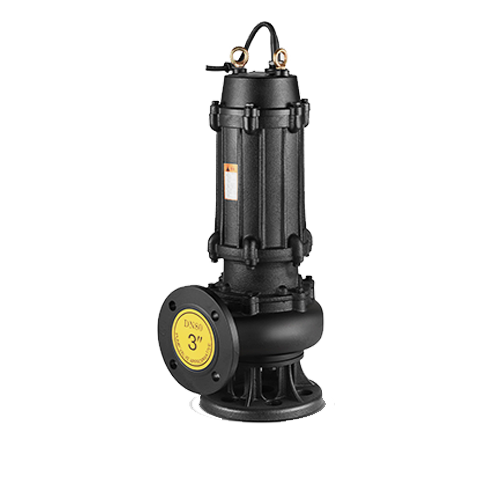

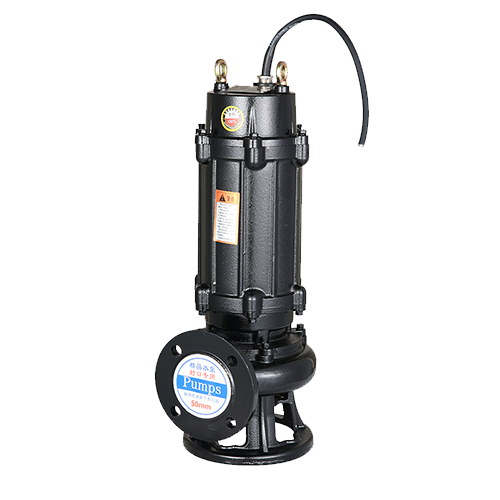

WQ series submersible sewage pump is mainly used for municipal work, industrial building, hotels, hospitals, civil air defense, mines, etc. It can be widely used in transfer waste water, rainwater and living water etc. which contains solid grains and various long fibers.
CONDISTIONS OF USE
1.Themedium temperature should not be over 40℃,the den-sity 1200Kg/m³,and the PH value within 5-9.
2.During running,the pump must notbelower than the lowestliquid level,see"vlowest liquid level"in the drawing ofinstallation dimensions(coveringthe automatic cooling syst-em), means lowest liquidlevel without no automatic coo-lingsystem.
3.Rated voltage 380V,rated frequency 50Hz.The motor canrun successfully only underthe condition the deviations of both rated voltage and frequency are not over 5%.
4.The maximum diameter of the solid grain goingthrough thepump has not to be larger than 50%of that of the pump outlet.
Performance
|
TYPE
|
Outlet diameter (mm) |
Capacity (m3/h) |
Head (m) |
Power (kw) |
Speed (r/min) |
Efficiency (%) |
| 25QW8-22-1.1 | 25 | 8 | 22 | 1.1 | 2825 | 38.5 |
| 32QW12-15-1.1 | 32 | 12 | 15 | 1.1 | 2825 | 40 |
| 40QW15-15-1.5 | 40 | 15 | 15 | 1.5 | 2840 | 45.1 |
| 40QW15-30-2.2 | 40 | 15 | 30 | 2.2 | 2840 | 48 |
| 50QW20-7-0.75 | 50 | 20 | 7 | 0.75 | 1390 | 54 |
| 50QW10-10-0.75 | 50 | 10 | 10 | 0.75 | 1390 | 56 |
| 50QW20-15-1.5 | 50 | 20 | 15 | 1.5 | 2840 | 55 |
| 50QW15-25-2.2 | 50 | 15 | 25 | 2.2 | 2840 | 56 |
| 50QW18-30-3 | 50 | 18 | 30 | 3 | 2880 | 58 |
| 50QW25-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 | 53 |
| 50QW20-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 | 55 |
| 65QW25-15-2.2 | 65 | 25 | 15 | 2.2 | 2840 | 52 |
| 65QW37-13-3 | 65 | 37 | 13 | 3 | 2880 | 55 |
| 65QW25-30-4 | 65 | 25 | 30 | 4 | 2890 | 58 |
| 65QW30-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 | 56 |
| 65QW35-50-11 | 65 | 35 | 50 | 11 | 2930 | 60 |
| 65QW35-60-15 | 65 | 35 | 60 | 15 | 2930 | 63 |
| 80QW40-7-2.2 | 80 | 40 | 7 | 2.2 | 1420 | 52 |
| 80QW43-13-3 | 80 | 43 | 13 | 3 | 2880 | 50 |
| 80QW40-15-4 | 80 | 40 | 15 | 4 | 2890 | 57 |
| 80QW65-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 | 56 |
| 100QW80-10-4 | 100 | 80 | 10 | 4 | 1440 | 62 |
| 100QW110-10-5.5 | 100 | 110 | 10 | 5.5 | 1440 | 66 |
| 100QW100-15-7.5 | 100 | 100 | 15 | 7.5 | 1440 | 67 |
| 100QW85-20-7.5 | 100 | 85 | 20 | 7.5 | 1440 | 68 |
| 100QW100-25-11 | 100 | 100 | 25 | 11 | 1460 | 65 |
| 100QW100-30-15 | 100 | 100 | 30 | 15 | 1460 | 66 |
| 100QW100-35-18.5 | 100 | 100 | 35 | 18.5 | 1470 | 65 |
| 125QW130-15-11 | 125 | 130 | 15 | 11 | 1460 | 62 |
| 120QW130-20-15 | 125 | 130 | 20 | 15 | 1460 | 63 |
| 150QW145-9-7.5 | 150 | 145 | 9 | 7.5 | 1440 | 63 |
| 150QW180-15-15 | 150 | 180 | 15 | 15 | 1460 | 65 |
| 150QW180-20-18.5 | 150 | 180 | 20 | 18.5 | 1470 | 75 |
| 150QW180-25-22 | 150 | 180 | 25 | 22 | 1470 | 76 |
| 150QW130-30-22 | 150 | 130 | 30 | 22 | 1470 | 75 |
| 150QW180-30-30 | 150 | 180 | 30 | 30 | 1470 | 73 |
| 150QW200-30-37 | 150 | 200 | 30 | 37 | 1480 | 70 |
| 200QW300-7-11 | 200 | 300 | 7 | 11 | 970 | 73 |
| QW200-250-11-15 | 200 | 250 | 11 | 15 | 970 | 74 |
| 200QW400-10-22 | 200 | 400 | 10 | 22 | 1470 | 76 |
| 200QW400-13-30 | 200 | 400 | 13 | 30 | 1470 | 73 |
| 200QW250-15-18.5 | 200 | 250 | 15 | 18.5 | 1470 | 72 |
| 200QW300-15-22 | 200 | 300 | 15 | 22 | 1470 | 73 |
| 200QW250-22-30 | 200 | 250 | 22 | 30 | 1470 | 71 |
| 200QW350-25-37 | 200 | 350 | 25 | 37 | 1980 | 75 |
| 200QW400-30-55 | 200 | 400 | 30 | 55 | 1480 | 70 |
| 250QW600-9-30 | 250 | 600 | 9 | 30 | 980 | 74 |
| 250QW600-12-37 | 250 | 600 | 12 | 37 | 1480 | 78 |
| 250QW600-15-45 | 250 | 600 | 15 | 45 | 1480 | 75 |
| 250QW600-20-55 | 250 | 600 | 20 | 55 | 1480 | 73 |
| 250QW600-25-75 | 250 | 600 | 25 | 75 | 1480 | 73 |
| 300QW800-12-45 | 300 | 800 | 12 | 45 | 980 | 76 |
| 300QW500-15-45 | 300 | 500 | 15 | 45 | 980 | 70 |
| 300QW800-15-55 | 300 | 800 | 15 | 55 | 980 | 73 |
| 300QW600-20-55 | 300 | 600 | 20 | 55 | 980 | 75 |
| 300QW800-20-75 | 300 | 800 | 20 | 75 | 980 | 78 |
| 300QW950-20-90 | 300 | 950 | 20 | 90 | 980 | 80 |
| 300QW1000-25-110 | 300 | 1000 | 25 | 110 | 980 | 82 |
| 350QW1100-10-55 | 350 | 1100 | 10 | 55 | 980 | 84.5 |
| 350QW1500-15-90 | 350 | 1500 | 15 | 90 | 980 | 82.5 |
| 350QW1200-18-90 | 350 | 1200 | 18 | 90 | 980 | 83.1 |
| 350QW1100-28-132 | 350 | 1100 | 28 | 132 | 740 | 83.2 |
| 350QW1000-36-160 | 350 | 1000 | 36 | 160 | 740 | 78.5 |
| 400QW1500-10-75 | 400 | 1500 | 10 | 75 | 980 | 82.1 |
| 400QW2000-15-132 | 400 | 2000 | 15 | 132 | 740 | 85.5 |
| 400QW1700-22-160 | 400 | 1700 | 22 | 160 | 740 | 82.1 |
| 400QW1500-26-160 | 400 | 1500 | 26 | 160 | 740 | 83.5 |
| 400QW1700-30-200 | 400 | 1700 | 30 | 200 | 740 | 83.5 |
| 400QW1800-32-250 | 400 | 1800 | 32 | 250 | 740 | 82.1 |
| 500QW2500-10-110 | 500 | 2500 | 10 | 110 | 740 | 82 |
| 500QW2600-15-160 | 500 | 2600 | 15 | 160 | 740 | 83 |
| 500QW2400-22-220 | 500 | 2400 | 22 | 220 | 740 | 84 |
| 500QW2600-24-250 | 500 | 2600 | 24 | 250 | 740 | 82 |
